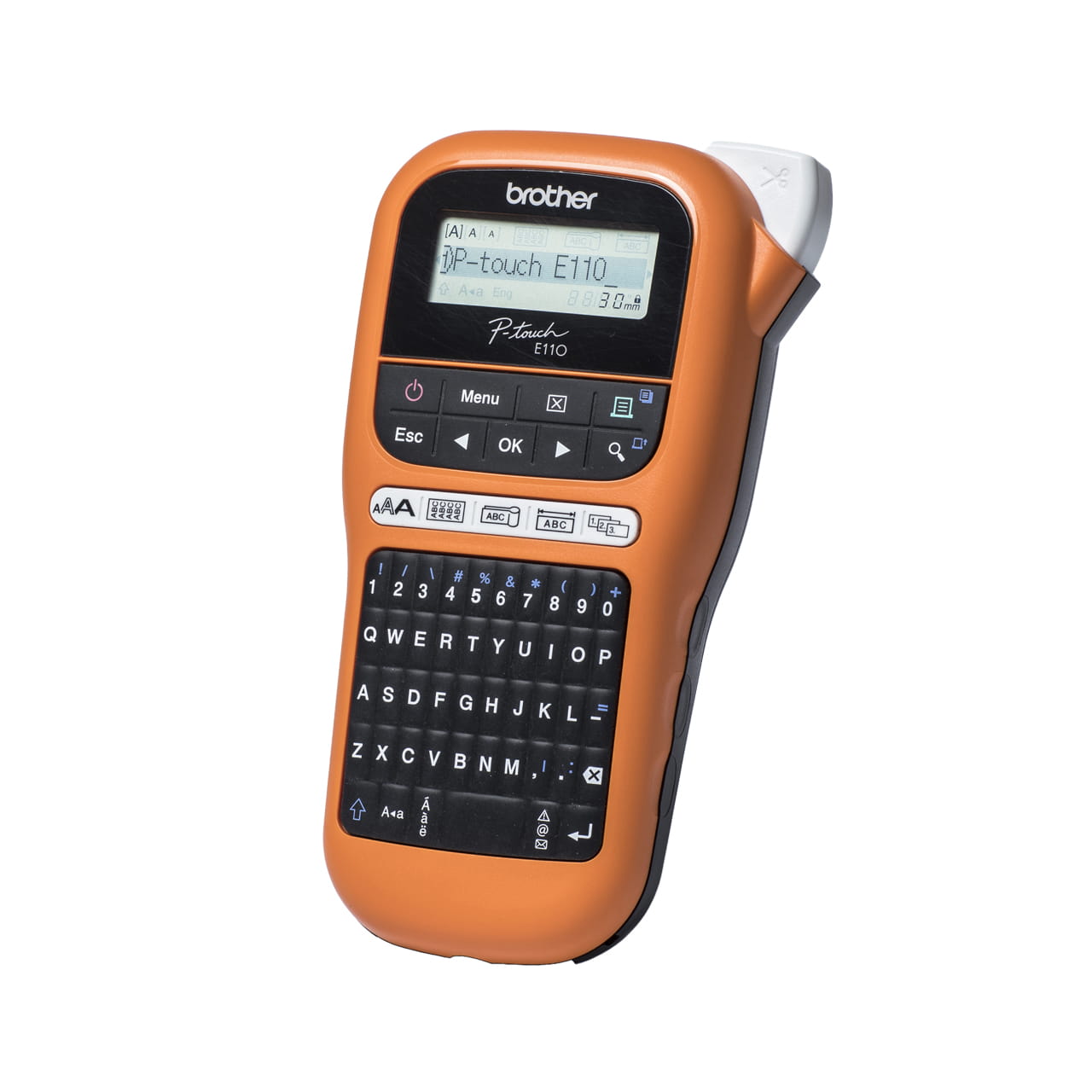

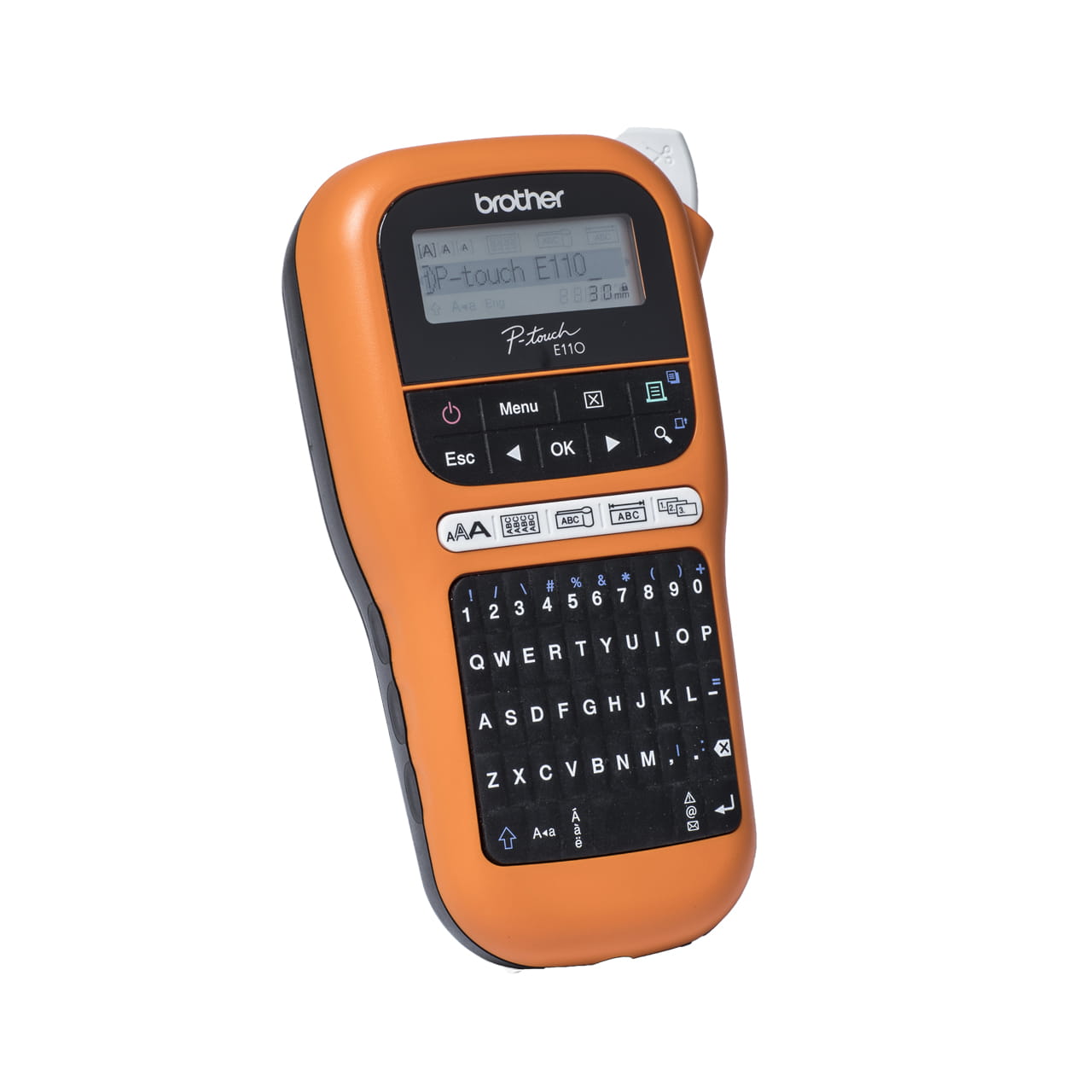

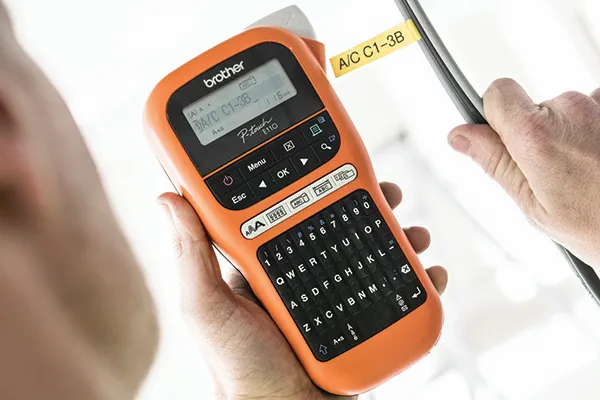

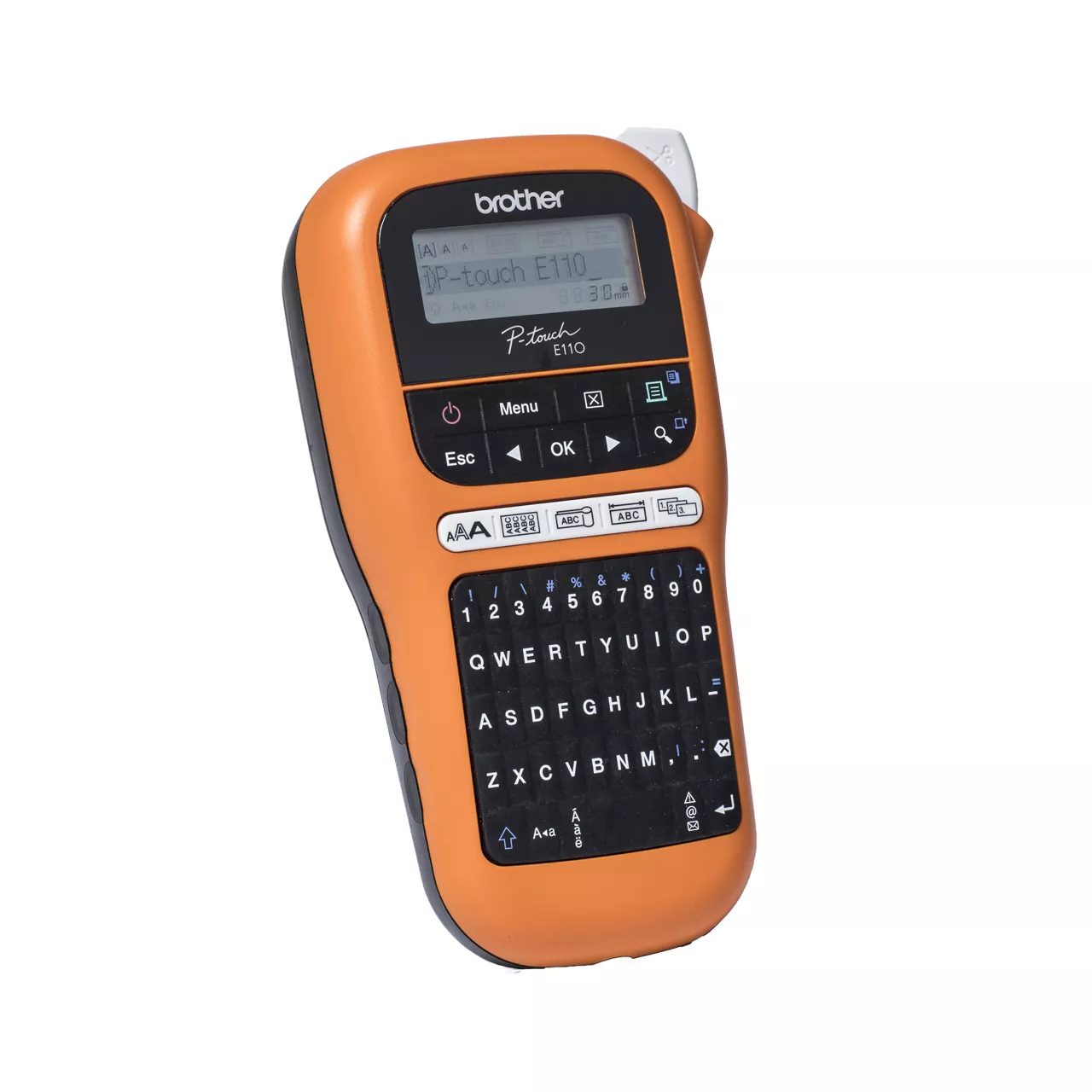

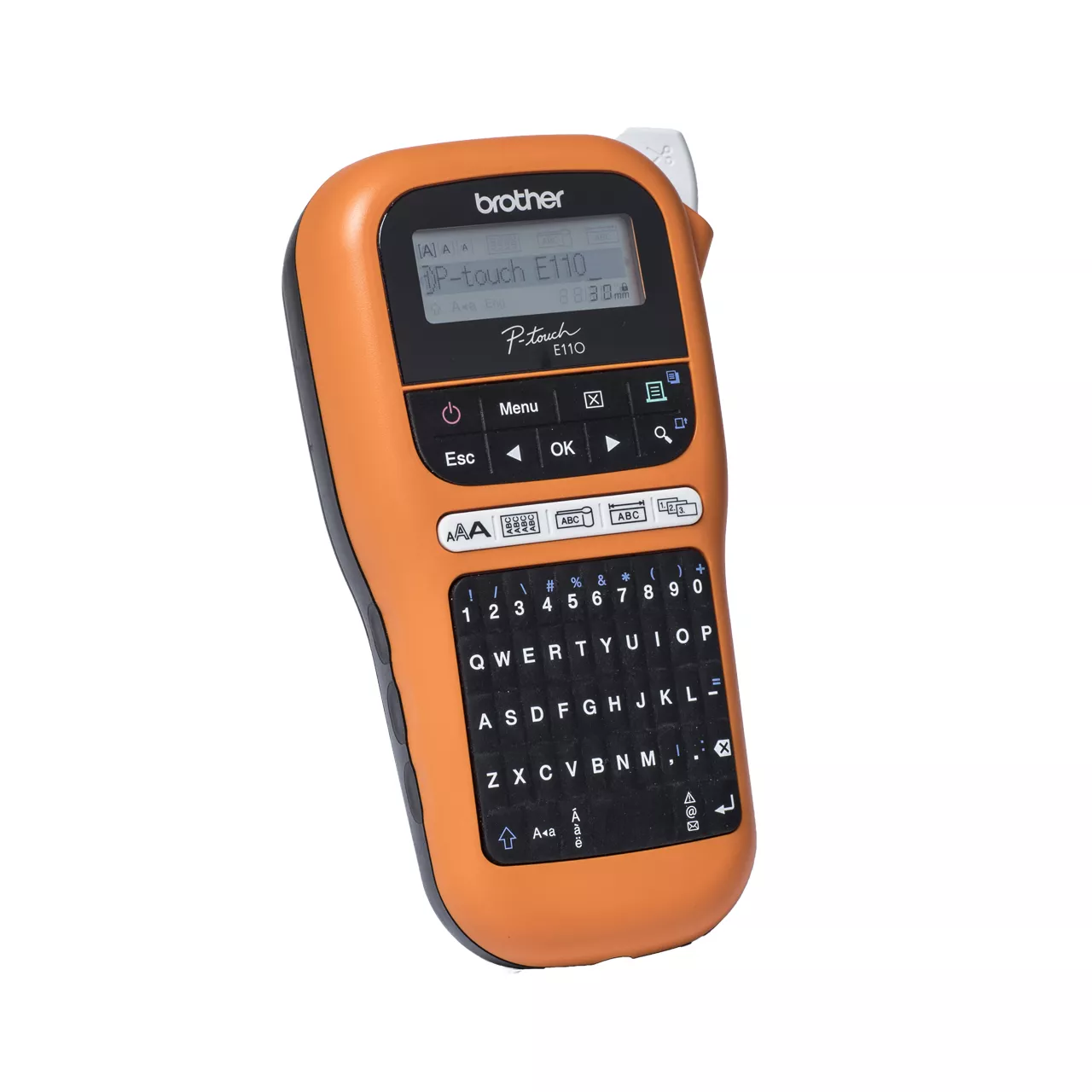

Portable Handheld Label printer for Electrical and Datacom installations
SGD 134.00
- Print up to 12mm TZe laminated tapes width
- QWERTY keyboard
- Manual cut function
- Dedicated function keys for electrical and datacom
- Comes with hard carrying case
- 1 frames, 10 font styles, 200 symbols, 9 memories
Information
Overview

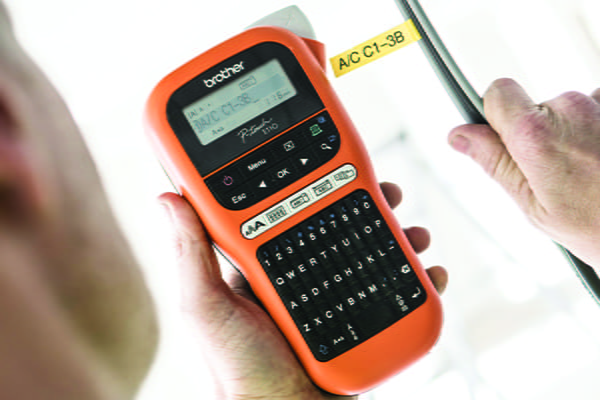

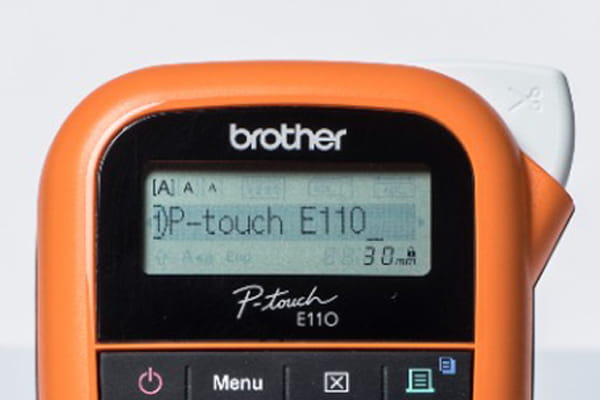

Graphical LCD
Comes with a graphical LCD for quick print preview before print.

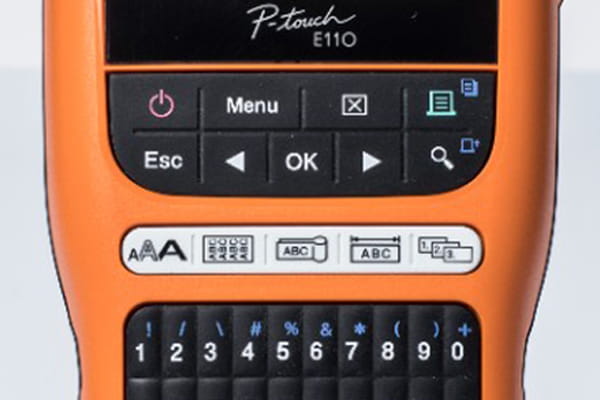

Dedicated Keypad functions
Come with dedicated keys to easily create Cable flag, Cable wrap, Patch panel, Equipment, and Faceplate ID labels.
Fast print speed
Print up to 20mm per second fast print speed.

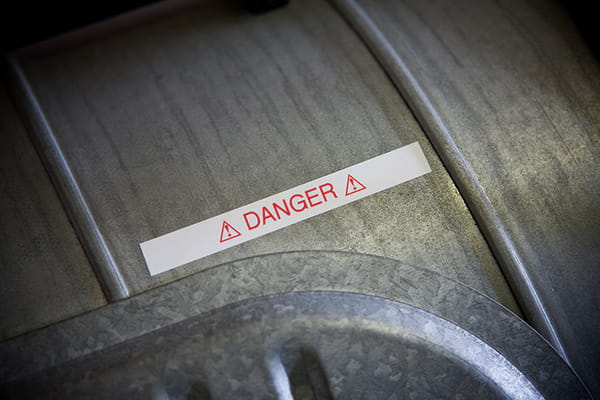

Built-in industrial symbols
Comes with 200 built-in electrical, datacom, AV, security, and safety symbols.

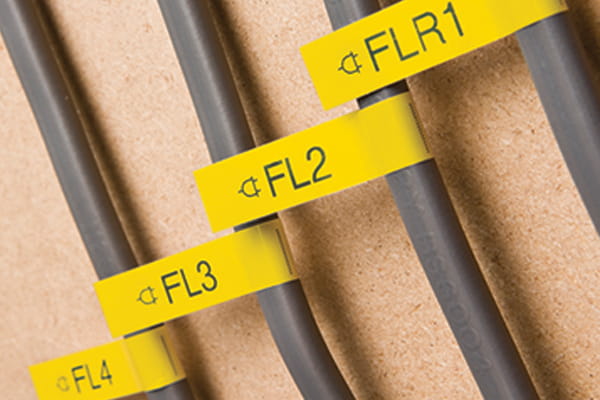

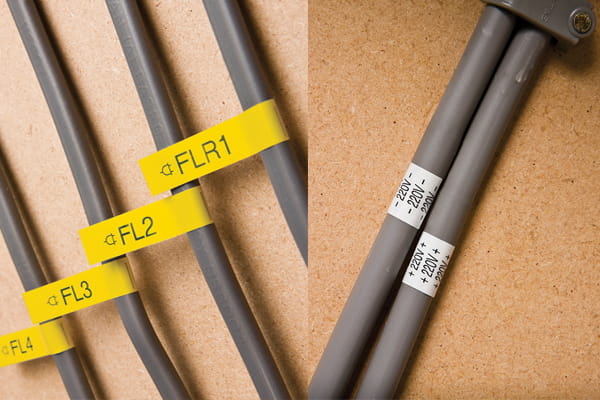

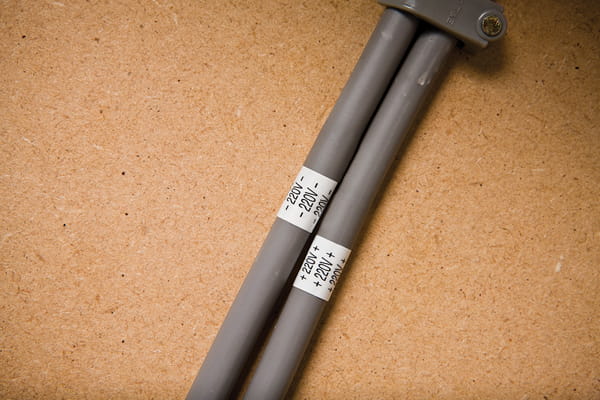

Cable Flag and Cable Wrap
Use Flexible identification tapes to print Cable flag or Cable wrap labels for quick identification of cables using the built-in templates.

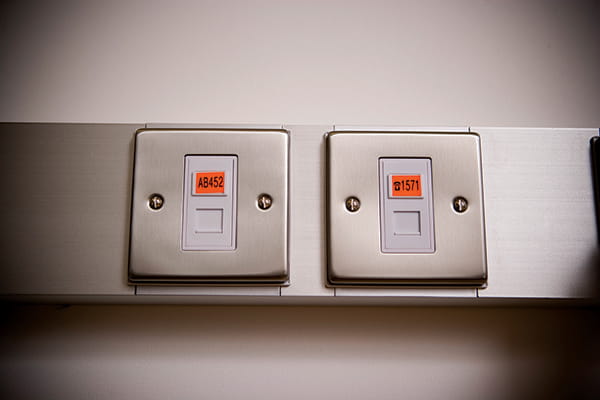

Faceplate

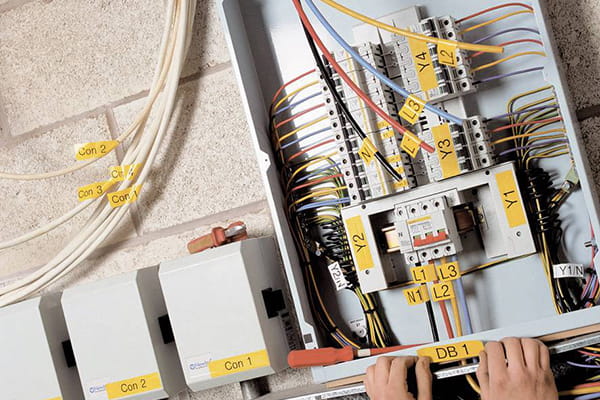

Create labels for socket outlets, network points, and faceplates.

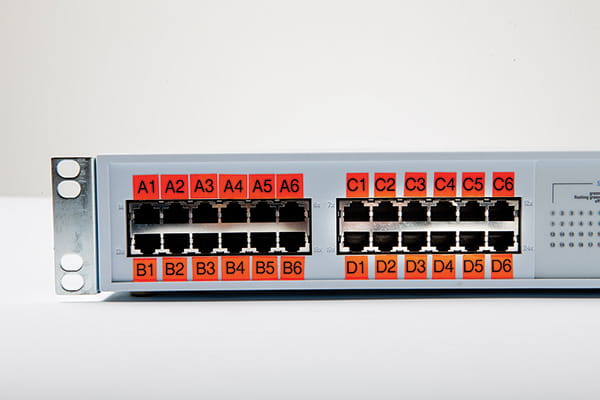

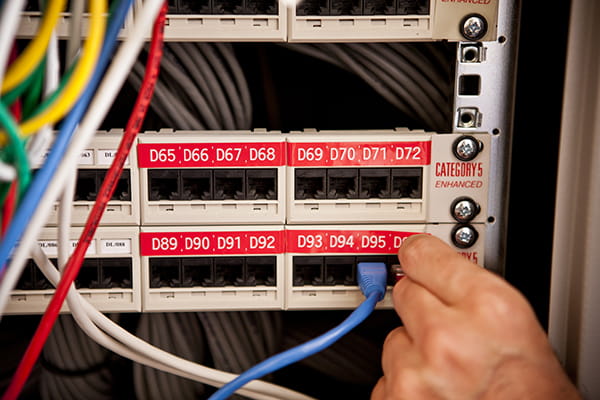

Patch panel
Create identification labels quickly for Patch Panel.
Serialisation
Use Serialise function to print numbers or letters in multiple quantities in sequence.

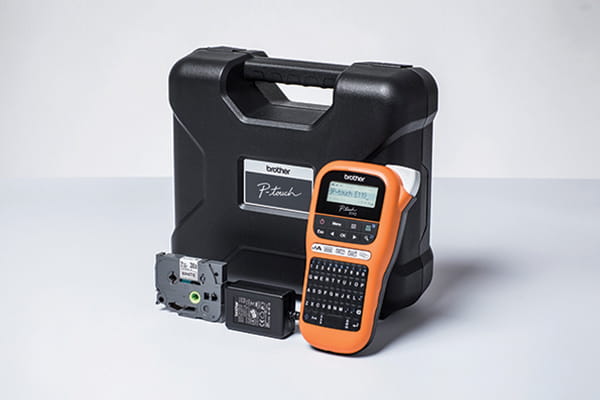

Completed Label Printer Package
Comes completed as a package that includes an AC power adapter and tape, all housed in a hard carrying case, Electricians and Cable installers can bring this labelling tool conveniently to their job site.
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 1 line
(uses 15 characters x 1 line)
Media Type
TZe tape
Available Tape Widths
6 mm, 9 mm, 12 mm
Product Dimensions (Width X Depth X Height)
110 mm × 58 mm × 204 mm
Weight
0.4 kg
Print Speed
20 mm/sec
Warranty
1 Year Carry in Warranty
Resolution
180 dpi
No. Of Printable Lines
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines
Number of Characters
377
Number of Symbols
200
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
1~50
Media
Maximum Tape Width
Up to 12 mm
Functions
Cutter
Manual
Multi Block Printing
No
Copy Printing
Yes ( 1 ~ 50 )
Mirror Printing
N/A
Preview
Yes
Memory
File Storage
9 files
Memory Buffer Size
up to 720 characters
Power
Power Source
6 AAA alkaline batteries (LR03), 6 AAA Ni-MH batteries (HR03), or AC adapter (AD-24ES)
Auto Power-Off
Yes ( Around 5 mins)
