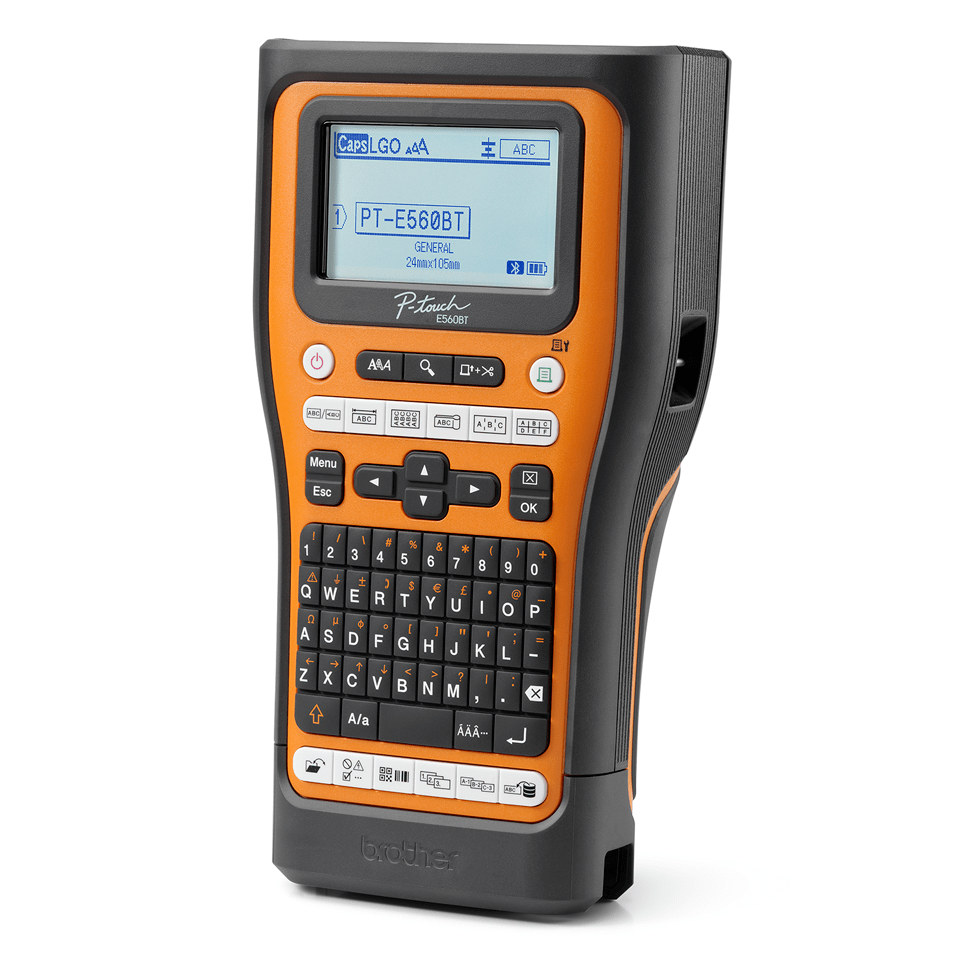

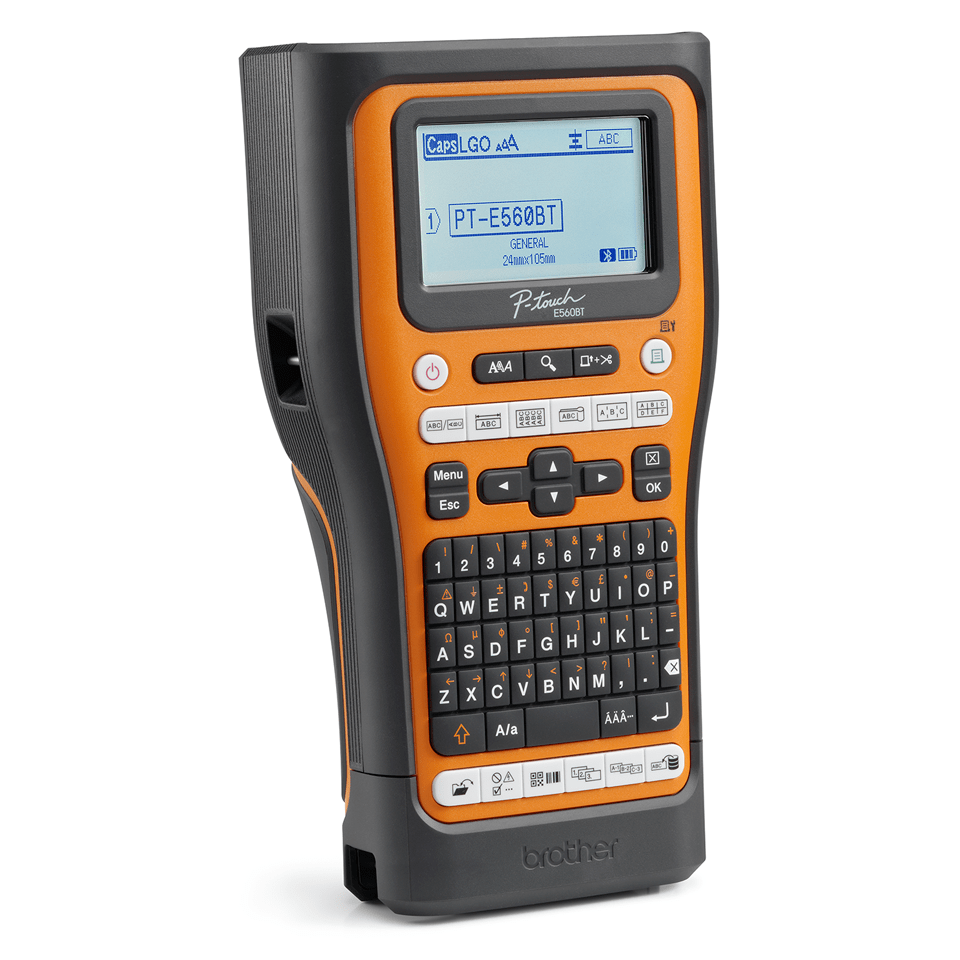

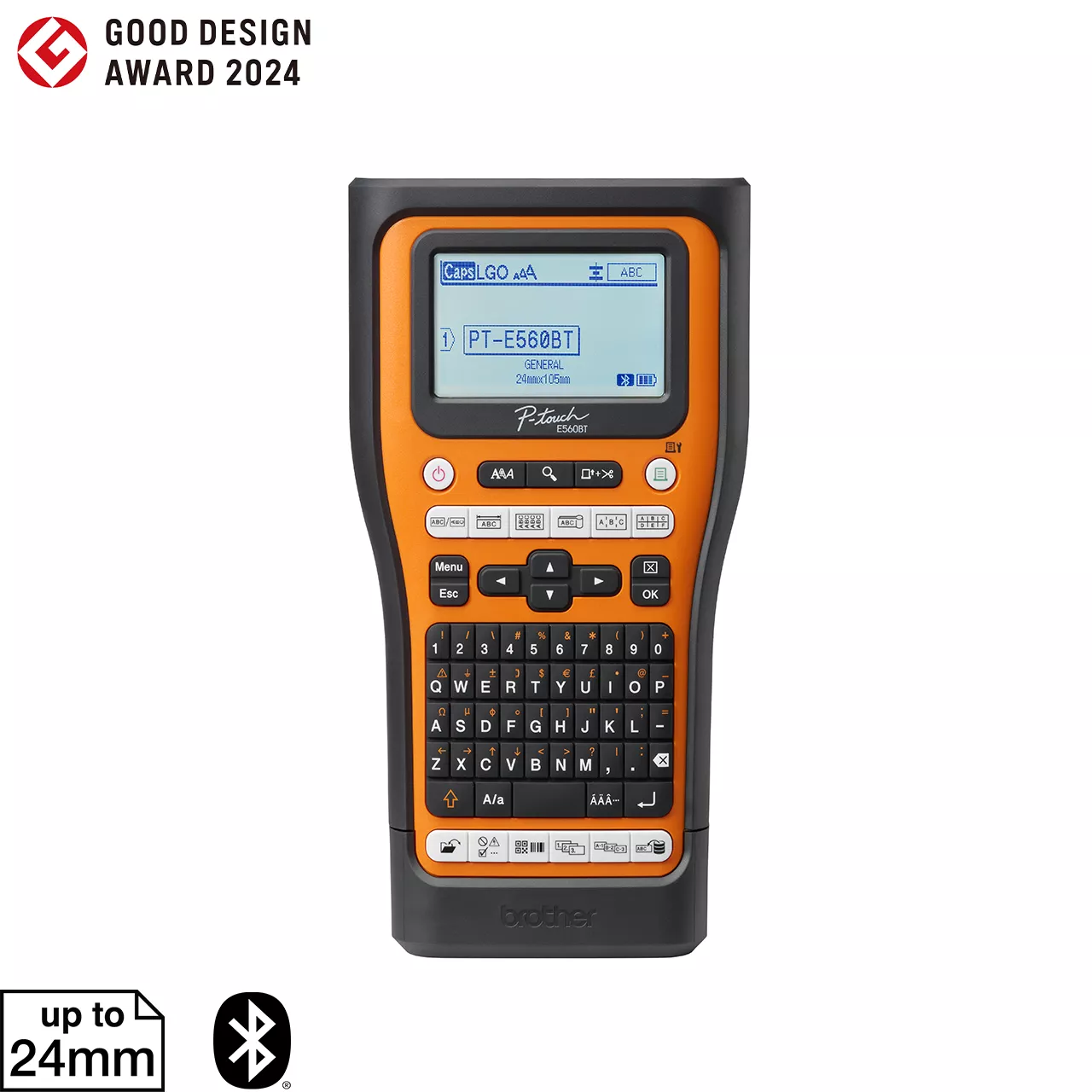

Portable Professional Labelling Printer for the Electrician and Networking Professional
- Print up to 24mm Strong Adhesive, Flexible ID, Heat shrink tubing and Self-laminating
- QWERTY keyboard
- Print speeds of up to 30mm/sec
- Comes with Rechargeable Li-ion Battery, AC Power adapter and Hard carrying case
- Automatic cutter with half-cut function
- Design and print labels using Brother Pro Label Tool App
Information
Overview

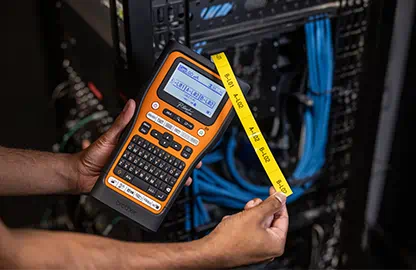

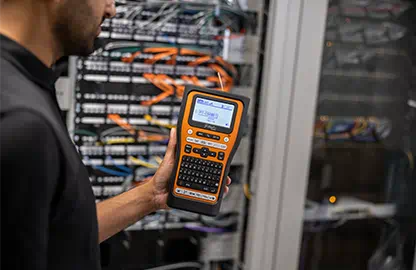

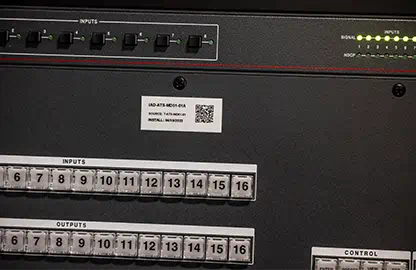

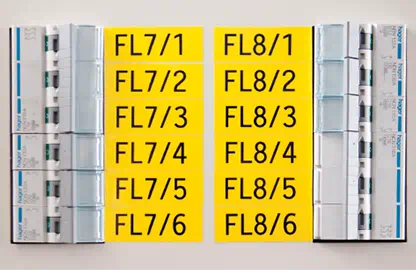

PT-E560BTVP offers a professional labelling solution for any electrical or datacom installations. Ensuring cables, conduits, switches and sockets are clearly identified with long-lasting, durable labels is essential for electricians, datacom, telecom and security equipment installers. It empowers workers to produce clear and durable labels quickly and efficiently on-site.
Main Features of PT-E560BTVP
- Easy to read, large backlit graphic display
- Prints durable labels up to 24mm wide
- Fast print speeds of up to 30mm/sec and automatic (full & half) cutter with easy peel function to print multiple labels in one continuous strip

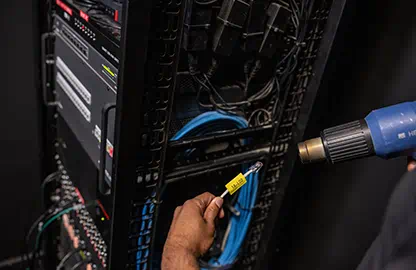

- Specialist tapes available including strong adhesive, flexible ID, heat shrink tubing and self-laminating
- 6x one-touch industry application keys for general, faceplate, cable flag/wrap, punch down block and patch panel identification

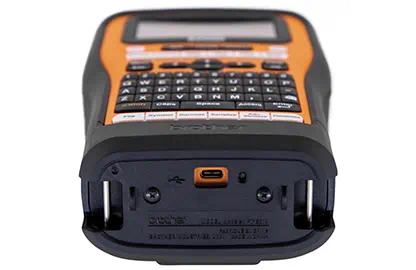

- USB connectable for PC printing, Bluetooth connectivity

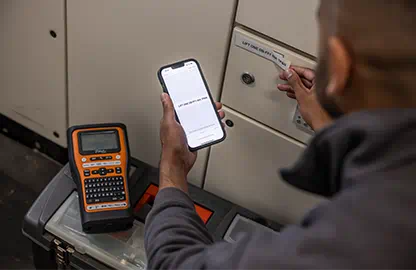

- Design and print labels using Brother Pro Label Tool App

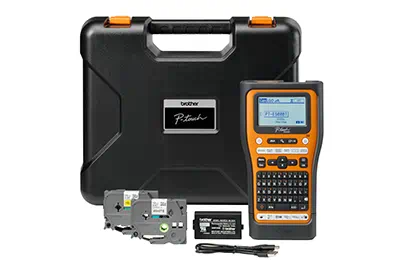

What is included?
- Carry case
- Rechargeable Li-Ion battery
- USB Type-C cable (1m, black)
- 1x 12mm black on white flexible ID tape, 1x 24mm black on yellow strong adhesive tape
- Documentation
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
18 characters x 3 lines
(240 x 120 dots)
Media Type
TZe, HGe, HSe (Heat-shrink Tube)
Available Tape Widths
TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
TZe-SL: 24mm
HGe: 6mm, 9mm, 12mm, 18mm, 24mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm, 21.0mm
Product Dimensions (Width X Depth X Height)
132 mm × 244 mm × 80 mm
Weight
1.05 kg
Print Speed
Using AC Adapter: Up to 30 mm/sec, Using Battery: Up to 20 mm/sec
Resolution
180 dpi / 128 dot
No. Of Printable Lines
24 mm tape: 1 - 7 lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 2 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line
Number of Characters
684 characters
Number of Symbols
476
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code(moder 1,model 2,micro QR,GS1)
11. Datamatrix
※GS1 QR codes will be transferred as micro QR codes.
1D barcodes only for transferred templates:
1.ISBN-2
2.ISBN-2
3.POSTNET
4.Laser Bar Code
5.GS1 DataBar(RSS)
6.Inteligent Mail Barcode
2D barcodes only for transferredtemplates:
1. PDF417
2.MaxiCode
3. AztecCode
4.GS-1 Composite
Numbering
Yes (1 - 99)
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth 5.0 (SPP/iAP)
Media
Maximum Tape Width
Up to 24 mm
Printing Width
Up to 18.0 mm
Functions
Cutter
Auto Full and Half
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Up to 99 files
Memory Buffer Size
Up to 1800 characters
Power
Power Source
Rechargeable Li-ion Battery (BA-E001)
Optional: AC Adapter for USB Type-C (PA-AD-004)
Auto Power-Off
Li-ion Battery (BA-E001): 20 minutes
AC Adapter for USB Type-C (PA-AD-004): 20 minutes
Supported Operating Systems
Supported OS
Windows 10, 11
