High Speed Professional Label Printer
SGD 281.00
- Print Black/Red text on White labels
- Auto cut function
- Print up to 62mm DK rolls width
- 93 labels per minute fast print speed
- 300 x 600dpi high print resolution
- Comes with Label collection templates
Information
Overview
Boasting the fastest print speed of up to 93 labels per minute in class, Brother’s QL-800 Professional label printer can print on labels up to 300dpi x 600dpi high print resolution and up to 62mm label width. Comes with an automatic cutter, Brother’s DK Die-cut paper, and Continuous length label Paper and Film rolls can be trimmed to a specific length required.
QL-800NWB Professional label printer is an ideal solution that unrivalled versatility for office, retail, food, postal, facilities and visitor management, and many other industries.
Black and Red text printing
Draw attention to important information with Brother’s DK-22251 62mm x 15.24mm Red/Black Continuous length paper label to highlight use-by dates, allergens, and other critical information.

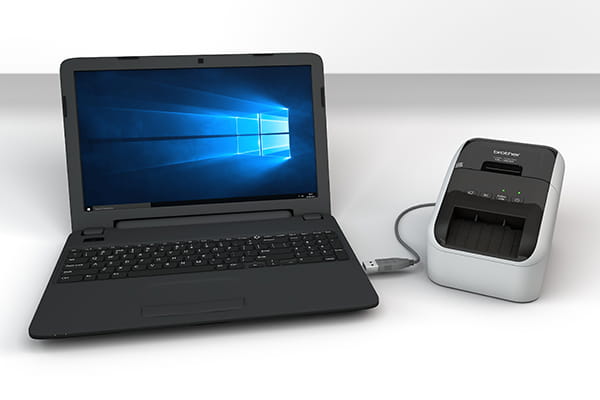

USB connection

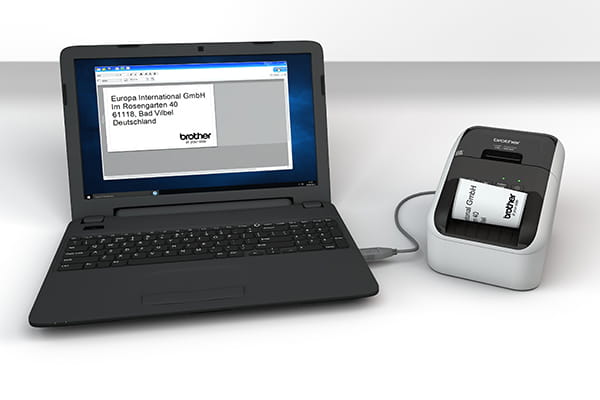

QL-800 label printer can connect to PC or Mac OS® systems via USB connection to print labels.
P-touch Editor Lite software
Designed to work like a USB flash drive, simply connect QL-800 label printer to a computer with a USB connection and launch the built-in P-touch Editor Lite software from the drive without any software or printer driver installation required. Images, frames, and fonts can be printed using this software.

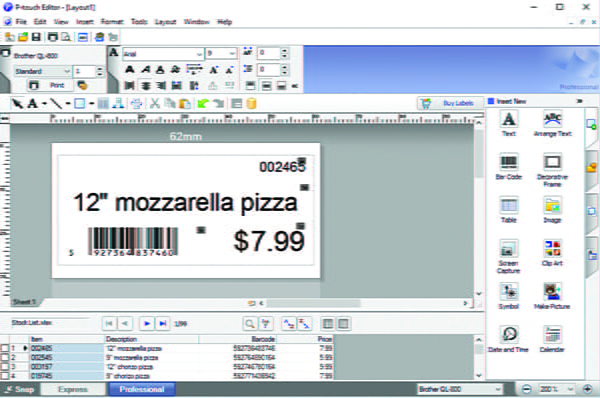

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via a USB connection with a PC or Mac OS® system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.
Seamless integration

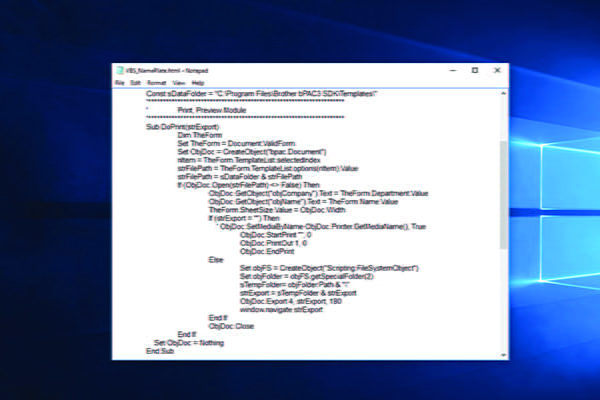

Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® Operating System and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx
Specifications
Basic Specs
Keyboard
No Keyboard
Media Type
DK roll
Available Tape Widths
12 - 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 213 mm × 142 mm
Weight
1.15 kg
Print Speed
Max. 5.8"/sec. (148 mm/sec.)
2 color (black and red on white DK roll) Print: Max 0.9"/sec (24 mm/sec)
Actual print speed varies depending on the conditions.
Warranty
1 Year Carry in Warranty
Resolution
Standard: 300dpi × 300dpi,
High resolution mode: 300dpi × 600dpi
No. Of Printable Lines
Adjustable within 62mm width
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. UCC/EAN-128(GS1-128)
4. ITF(I-2/5)
5. CODABAR(NW-7)
6. UPC-A
7. UPC-E
8. EAN-8
9. EAN-13(JAN13)
10. GS1 DataBar(RSS)(GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked)
11. PDF417(Standard, Truncate, Micro)
12. QR Code(Model 1, Model 2, Micro)
13. Data Matrix (ECC200 Square, ECC200 Rectangular)
14. MaxiCode
15. CODE93
16. POSTNET
17. UPC-E EXTENTION
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB version 2.0 (Full Speed)
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Auto
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
No
Memory Buffer Size
No
Power
Power Source
Bundled with 220 - 240V AC internal power supply
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster
