Professional Label Printer for Healthcare, Logistics, Retail and Food industry
- Compatible with customised media
- Print on Wristbands, Receipts and Labels
- Print up to 118mm label rolls width
- 203mm per second fast print speed
- USB, Serial, Wired Network connectivity
- 203dpi print resolution
Information
Overview

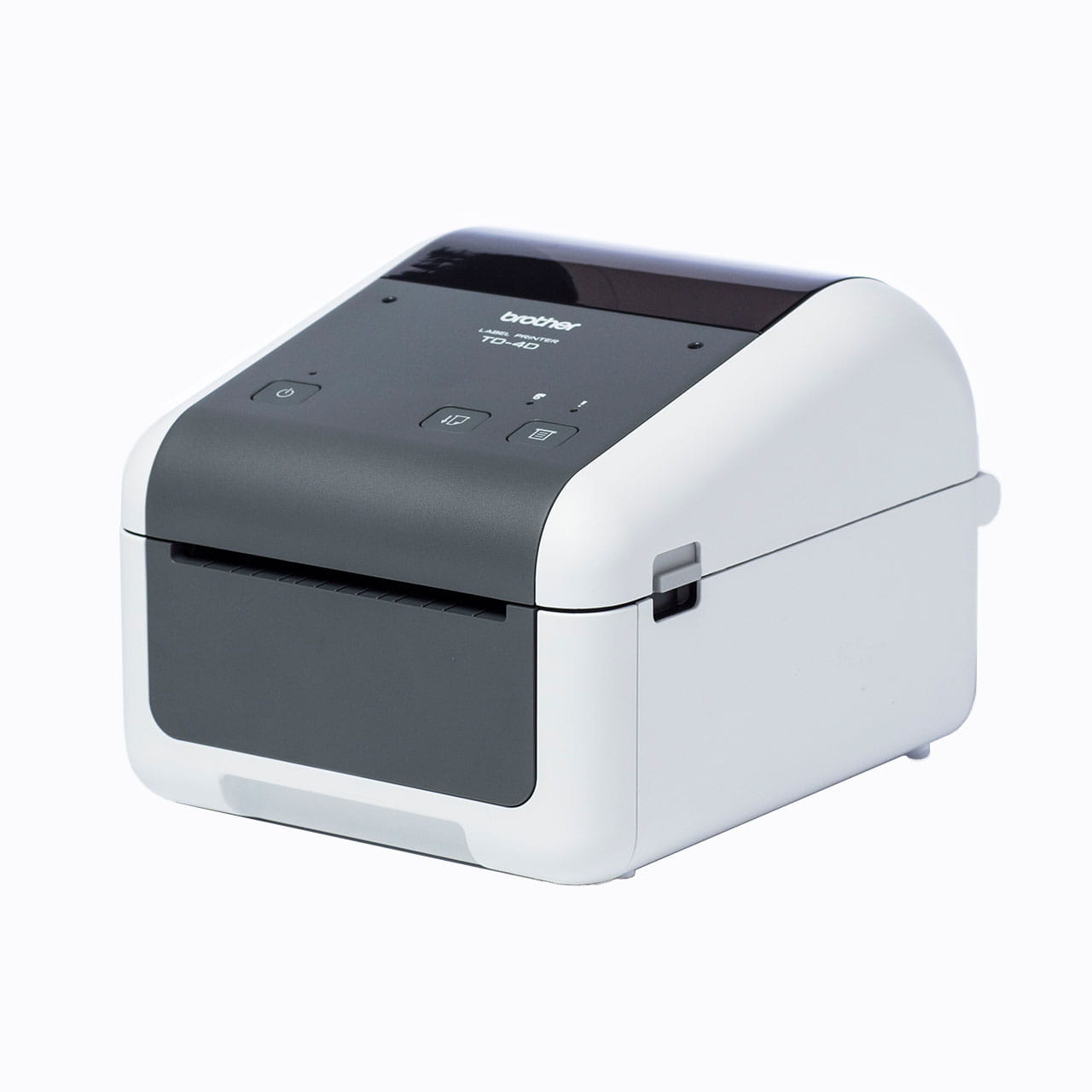

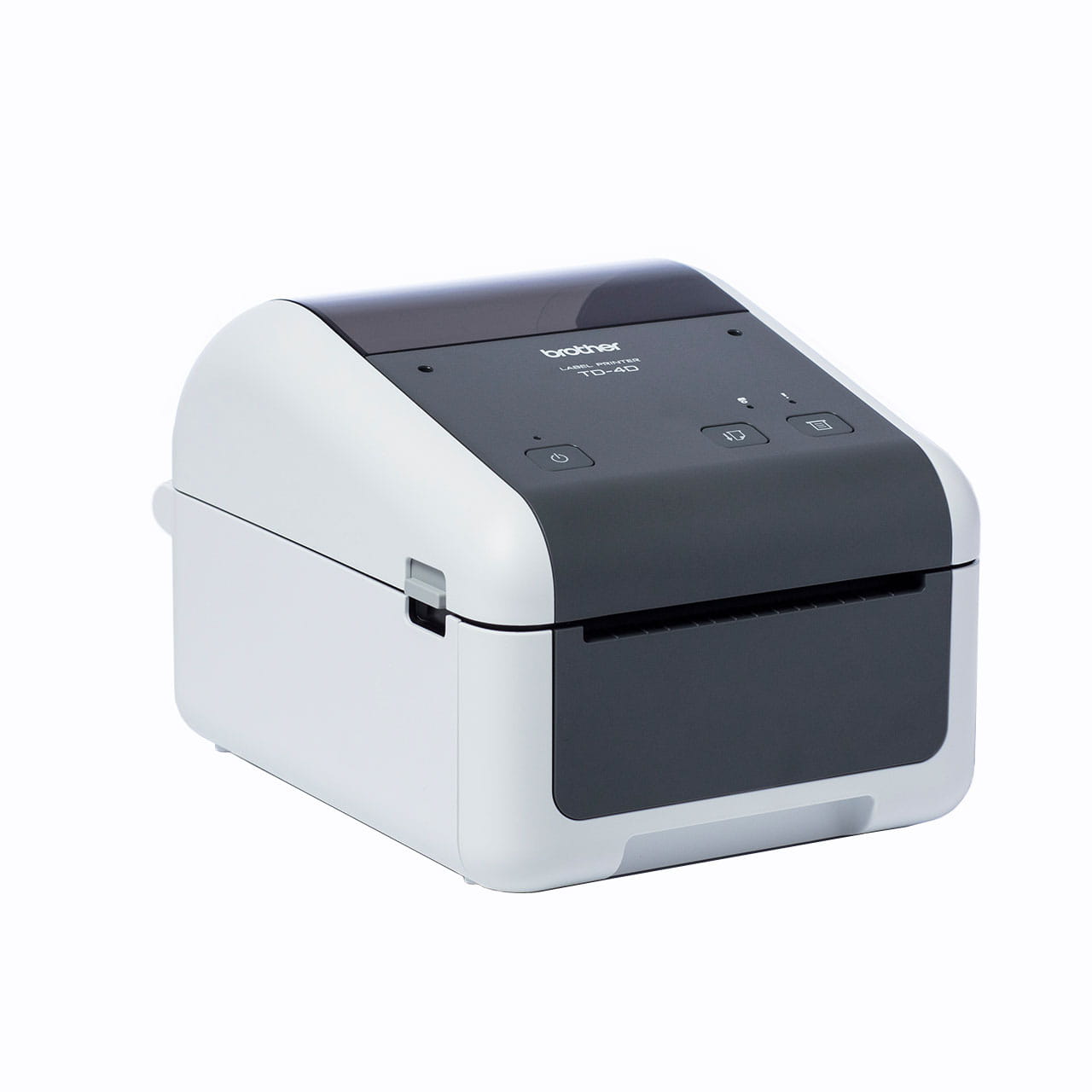

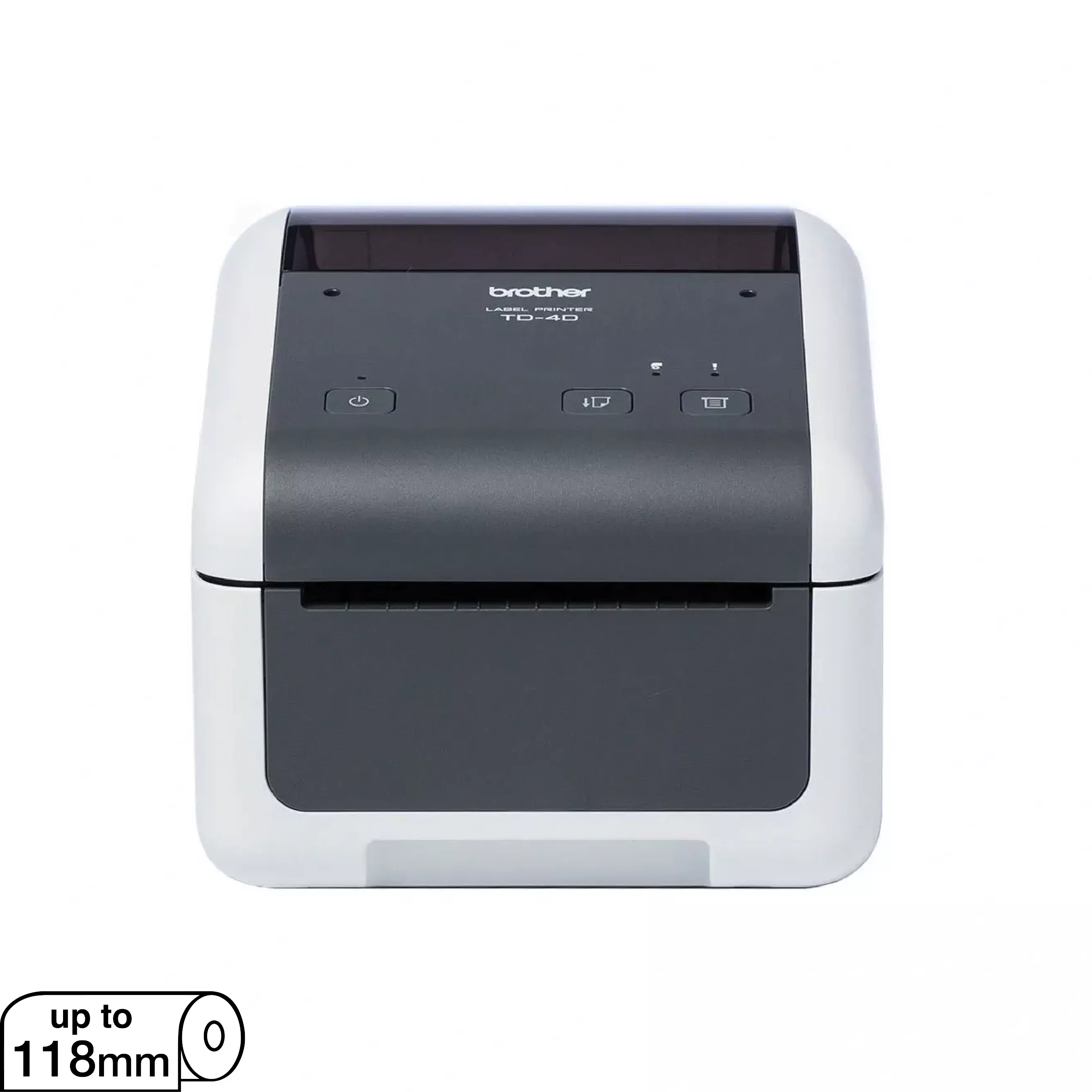

Brother’s TD-4420DN label printer can print labels up to 4 inches in width and at a resolution of up to 203 dpi. Support direct thermal printing technology, traditional ribbons, and ink are not required which saves cost.
Labels or receipts can be loaded easily onto TD-4420DN label printer due to its spindle-less design which requires less time to re-load the media and print up to 203mm per second which improves efficiency. TD-4420DN label printer also offers the flexibility to accommodate third-party supplies.
Comes with a complimentary Brother’s P-touch Editor software that supports barcode printing and embellish font programming for highlighting specific words, importing graphics, and date format, labels or receipts can be printed out via USB or Ethernet connection.
TD-4420DN label printer can provide an easy-to-use solution with improved operational efficiency due to its high speed and continuous label printing and is truly a personalised solution for a wide range of vertical industry applications.
Healthcare industry
With strict regulations on tracking patient specimens and other items within the Healthcare industry, clear and high-quality labels can be printed from TD-4420DN label printers to maintain patients’ safety and traceability.

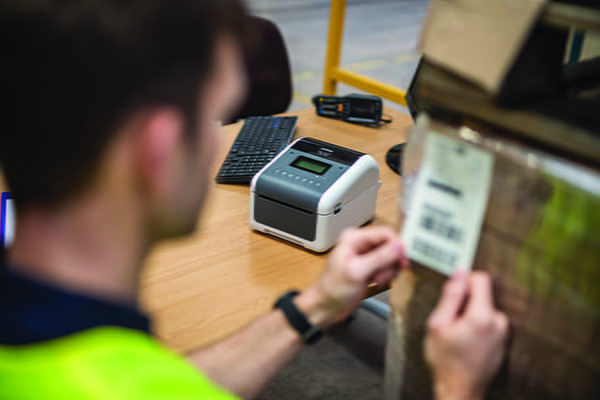

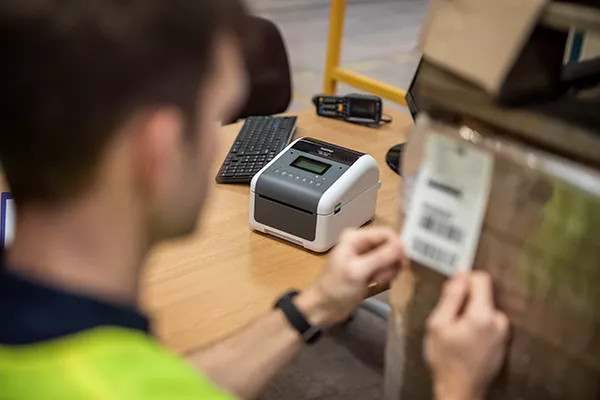

Logistics and
Warehousing industry
Efficient warehousing operations and worker productivity are critical to the success of any organisation.
Several common sizes shipping labels, custom-size labels can be created and there are many uses of TD-4420DN label printers in the Logistics and Warehousing industries.
Retail industry
Easy-to-read labels are essential for consumers to make informed decisions before purchasing.
High-quality labels can be printed in high resolution from TD-4420DN label printer which will make each label looks professional with sharp text, logos, or barcodes which allows faultless scanning at the retail checkout.

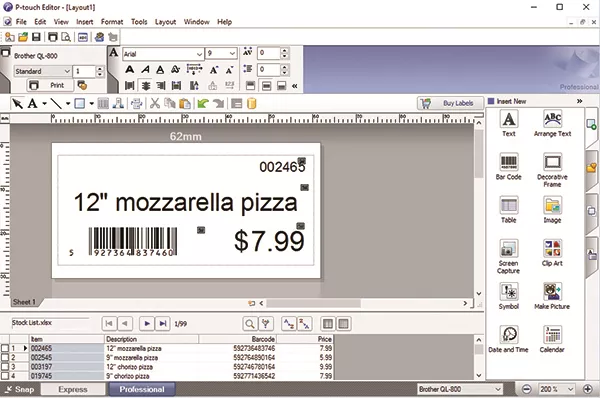

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via an Ethernet or USB connection with a PC system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.

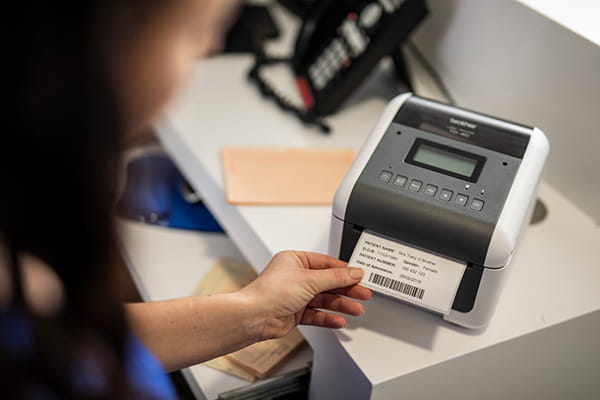

Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® Operating System and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx

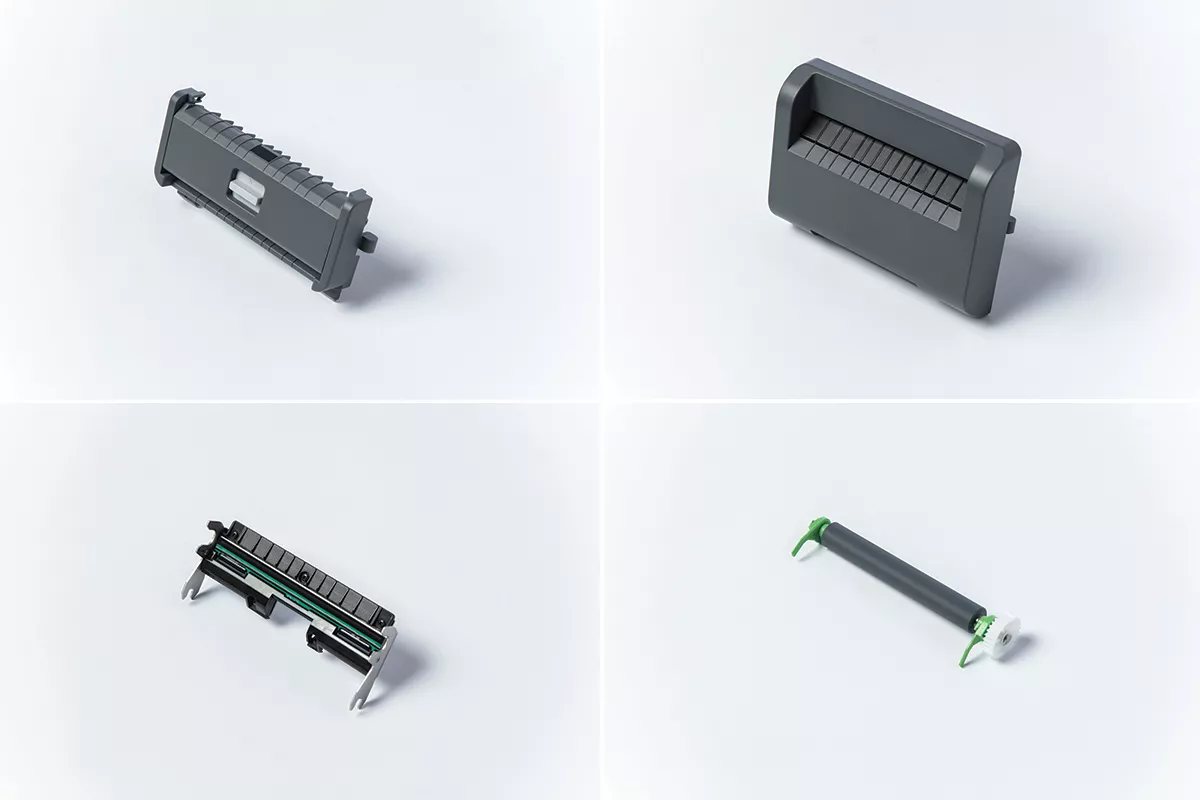

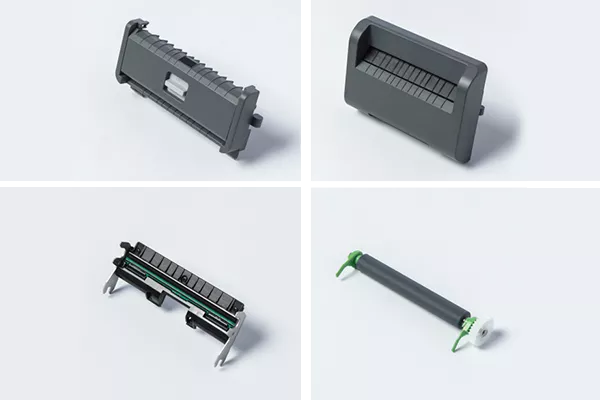

A variety of
optional accessories
Come with a wide range of accessories* to customise solutions, Brother can help end-users to be equipped with their devices to cope with any specific requirements.
*Separate purchase required
Specifications
Basic Specs
Keyboard
No Keyboard
Display Type
SVGA/High Color or more
Media Type
RD rolls, Wristband, Continuous, Die Cut, Fan Fold, Perforated ,Tag, Non-proprietary media
Available Tape Widths
Up to 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Warranty
1 Year Carry in Warranty
Resolution
203 dpi
No. Of Printable Lines
Adjustable within 118mm width
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. ITF(I-2/5)
4. EAN-8(JAN8)
5. EAN-13(JAN13)
6. UPC-A
7. UPC-E
8. CODABAR (NW-7)
9. GS1-128 (UCC/EAN 128)
10. GS1 Databar (Standard (Omnidirectional)/Truncbated/Stacked/Stacked Omnidirectional/ Limited/Expanded)
11. CODE93
12. POSTNET
13. UPC/EAN EXTENSION
14. MSI
15. Intelligent Mail Barcode
16. QR Code (model 1, model 2, micro QR)
17. Maxicode
18. PDF417 (Standard, Truncate, MicroPDF417)
19. Data Matrix (ECC200 Square, ECC200 Rectangular)
20. Aztec
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB
Media
Maximum Roll Width
19 ~ 118 mm
Printing Width
Up to 104.1 mm
Functions
Cutter
No cutter. Optional: PA-CU-001 cutter
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
64MB
Memory Buffer Size
64MB
Power
Power Source
Bundled with PA-AD-002 AC Power Adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation
