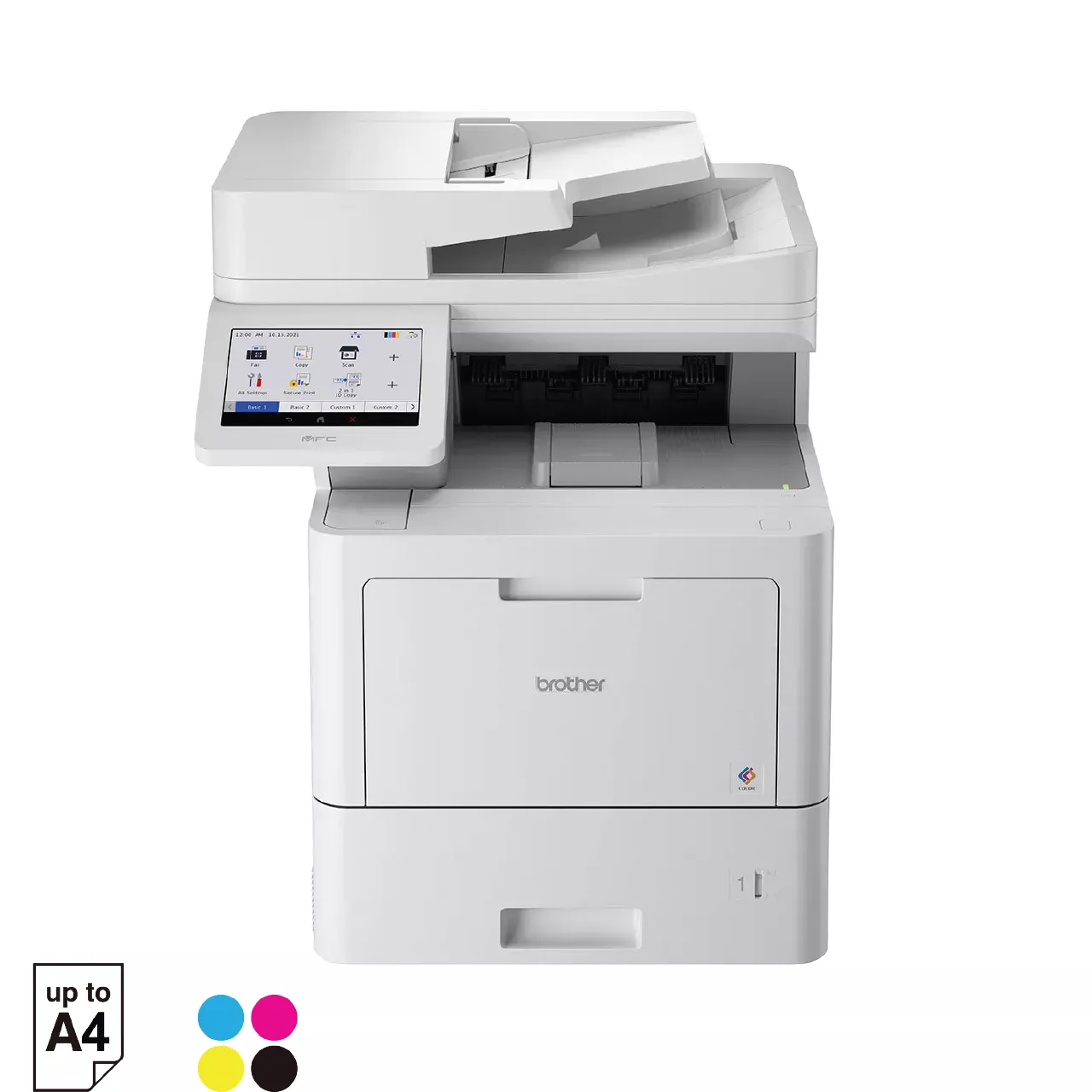

Auto 2-sided Duplex Printing with optional WiFi module ( Need additional purchase)
SGD 2,288.00
- Up to 40/42 ppm (A4/LTR)
- Automatic 2-sided (Duplex) Print
- Replaceable Super High-yield Toners
Information
Overview
FASTEST IN ITS CLASS*
The MFC-L9630CDN helps you to stay productive with the fastest print speeds in its class with up to 40 pages per minute.

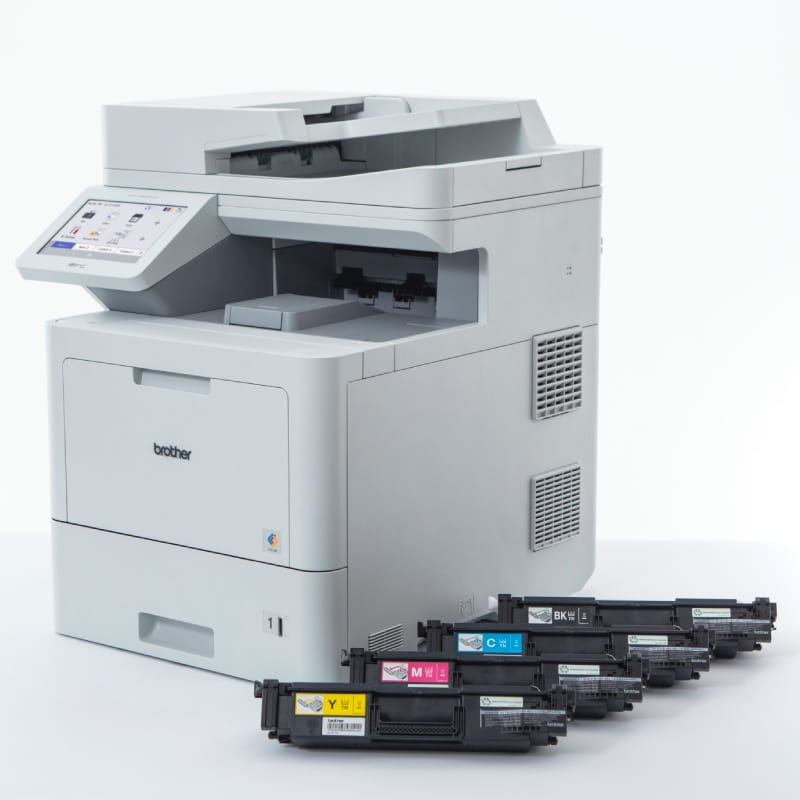

HIGH VOLUME PRINTING
With the included Brother toner cartridges, get yields up to 9,000** pages for black and 6,500** pages for color. Cost has never been more efficient.
WORKFLOW INTEGRATIONS
Utilize software integration options for print and document management requirements, tailored to your business needs. Contact our team to find out more.

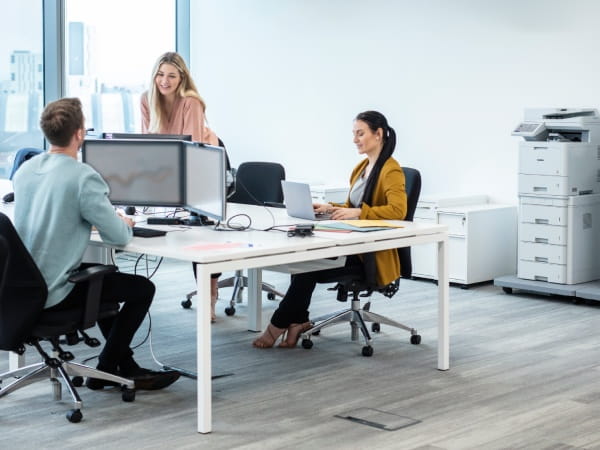

DESIGNED FOR WORKGROUPS
Built-in cloud apps help your team share documents by directly digitising to OneDrive, Google Drive or Dropbox.
Our user interface is designed for teams - users can personalize their own buttons for quick and easy access to frequently used features like emailing a document or scanning to cloud.

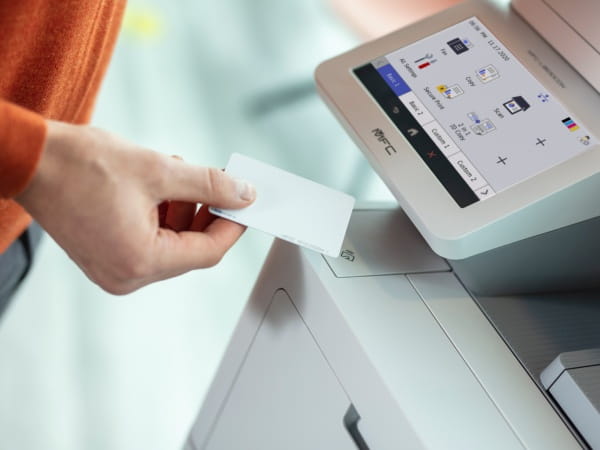

INTEGRATED SECURITY
Ready to integrate with your user groups with Active Directory and LDAP support, combined with NFC authentication to manage access within in your organisation.
IPSec support for data encryption and ensuring your organisation information remains confidential.

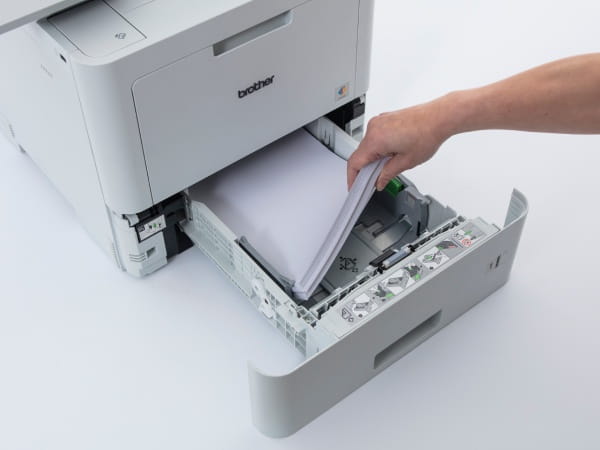

LARGE PAPER CAPACITY
The addition of the 520 sheet paper tray means that you'll spend less time restocking paper, and more time on business critical tasks.
The multi purpose tray gives you the flexibility of printing on thicker paper up to 230gsm and print envelopes.
Specifications
Basic Specs
Functions
Fax, Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
503 mm × 541 mm × 586 mm
Weight
30.1 kg
Print Speed
A4: Up to 40 ppm
Letter: Up to 42 ppm
Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Resolution
Up to 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
2-Sided (Duplex) - Paper Size
A4, A4 Short (270mm Paper), Letter, Legal, Mexico Legal, India Legal, Folio
Paper handling
Tray #1 - Paper Type
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #2 - Paper Type
A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Capacity
LT-330CL: Up to 250 sheets of 80 gsm plain paper
LT-340CL: Up to 500 sheets of 80 gsm plain paper
Multi-purpose Tray - Paper Type
Width: 76.2 to 215.9 mm / Length: 127 to 355.6 mm
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Envelope; 15 envelopes

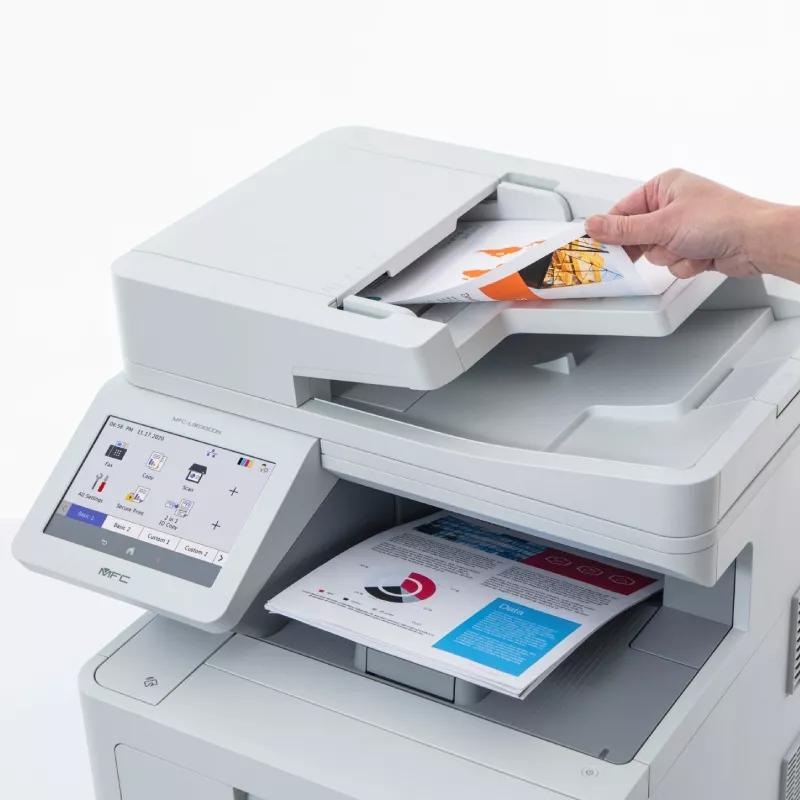

Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 100 sheets
Paper Output
Face Down Output Tray: Up to 250 sheets of 80 gsm Plain Paper
Face Up Output Tray: Up to 1 sheet
Copy
Colour / Monochrome
Yes
Yes
Multiple Copies
Up to 999 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Print: Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19,200 × 19,200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 600 × 600 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 × 600 dpi
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart, JBIG)
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart, JBIG)
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
7.0" TFT ColorLCD
Memory Capacity
2 GB
Operation
Power Source
220 V to 240 V AC 50/60 Hz
Power Consumption - Ready
Approx. 85 W
Power Consumption - Sleep
Approx. 16.8 W
Power Consumption - Power Off
Approx. 0.04 W
Noise Level
56.5 dB (A)
Supported Operating Systems
Supported OS
Windows® Server 2008, Server 2008 R2, 7, 8.1, Server 2012, Server 2012 R2, 10, Server 2016, Server 2019
