Brother TD-4420DN Label Printer

Professional Label Printer for Healthcare, Logistics, Retail and Food industry

Contact Us

There are no reviews for this product yet.
  • Compatible with customised media
  • Print on Wristbands, Receipts and Labels
  • Print up to 118mm label rolls width
  • 203mm per second fast print speed
  • USB and Wired Network connectivity
  • 203dpi print resolution

Overview

Brother’s TD-4420DN label printer can print labels up to 4 inches in width and at a resolution of up to 203 dpi. Support direct thermal printing technology, traditional ribbons, and ink are not required which saves cost.

Labels or receipts can be loaded easily onto TD-4420DN label printer due to its spindle-less design which requires less time to re-load the media and print up to 203mm per second which improves efficiency. TD-4420DN label printer also offers the flexibility to accommodate third-party supplies.

Comes with a complimentary Brother’s P-touch Editor software that supports barcode printing and embellish font programming for highlighting specific words, importing graphics, and date format, labels or receipts can be printed out via USB or Ethernet connection.

TD-4420DN label printer can provide an easy-to-use solution with improved operational efficiency due to its high speed and continuous label printing and is truly a personalised solution for a wide range of vertical industry applications.

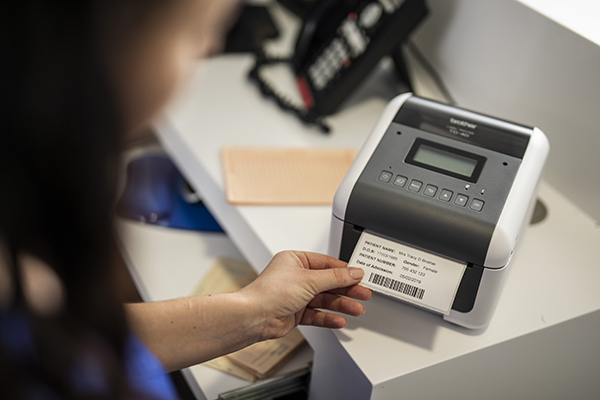

Healthcare industry

Healthcare industry

With strict regulations on tracking patient specimens and other items within the Healthcare industry, clear and high-quality labels can be printed from TD-4420DN label printers to maintain patients’ safety and traceability.

Logistics and
Warehousing industry

Logistics and Warehousing industry

Efficient warehousing operations and worker productivity are critical to the success of any organisation.

Several common sizes shipping labels, custom-size labels can be created and there are many uses of TD-4420DN label printers in the Logistics and Warehousing industries.

Retail industry

Retail industry

Easy-to-read labels are essential for consumers to make informed decisions before purchasing.

High-quality labels can be printed in high resolution from TD-4420DN label printer which will make each label looks professional with sharp text, logos, or barcodes which allows faultless scanning at the retail checkout.

P-touch Editor software

P-touch Editor software

Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via an Ethernet or USB connection with a PC system.

P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.

Seamless integration

Seamless integration

Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® Operating System and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.

For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx

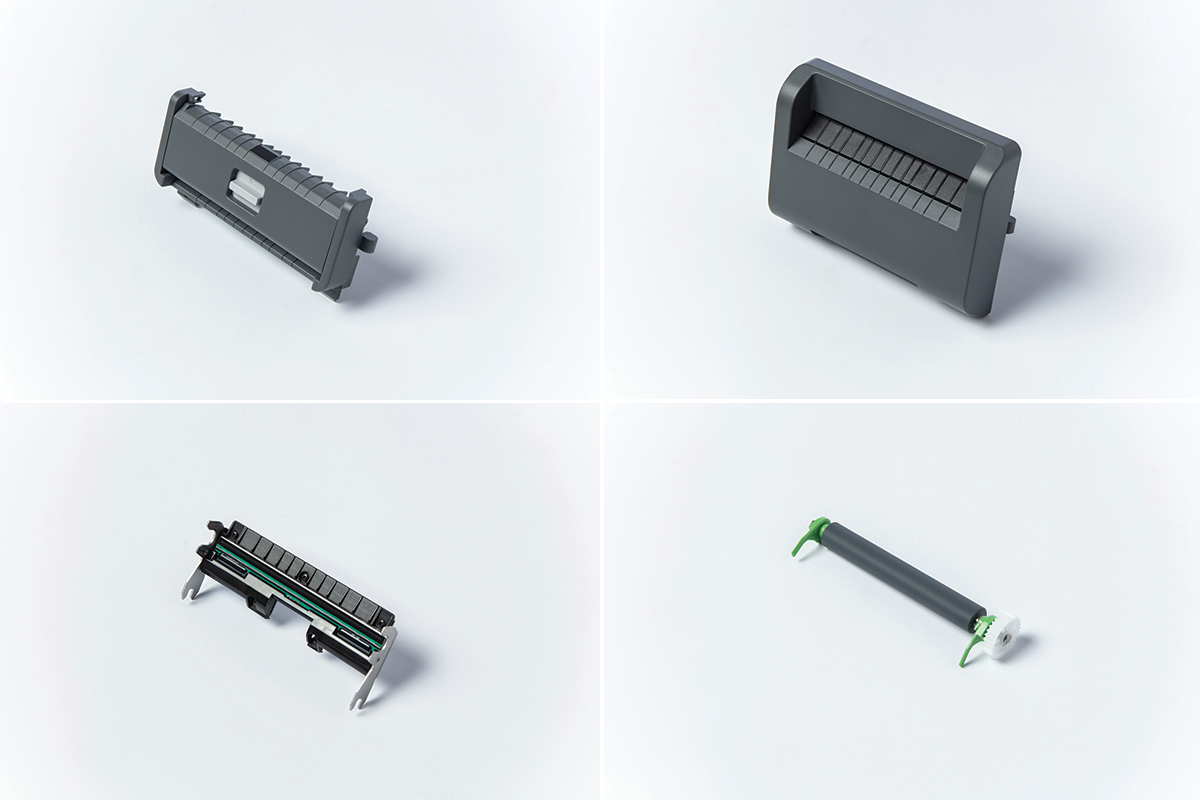

A variety of
optional accessories

A variety of optional accessories

Come with a wide range of accessories* to customise solutions, Brother can help end-users to be equipped with their devices to cope with any specific requirements.

*Separate purchase required

Specifications

Basic Specs

Keyboard

No Keyboard

Media Type

RD rolls, Wristband, Continuous, Die Cut, Fan Fold, Perforated ,Tag, Non-proprietary media

Available Tape Widths

Up to 118 mm

Dimension (Width x Depth x Height)

180 mm x 224 mm x 155 mm

Weight

2.08 kg

Warranty

1 Year Carry in Warranty

Print Output

Print Resolution

203dpi

Print Speed

203mm

No. of Lines Printable

Adjustable within 118mm width

Number of Characters

No

Number of Symbols

No

Bar Code

1. CODE 39
2. CODE 128
3. ITF(I-2/5)
4. EAN-8(JAN8)
5. EAN-13(JAN13)
6. UPC-A
7. UPC-E
8. CODABAR (NW-7)
9. GS1-128 (UCC/EAN 128)
10. GS1 Databar (Standard (Omnidirectional)/Truncbated/Stacked/Stacked Omnidirectional/ Limited/Expanded)
11. CODE93
12. POSTNET
13. UPC/EAN EXTENSION
14. MSI
15. Intelligent Mail Barcode
16. QR Code (model 1, model 2, micro QR)
17. Maxicode
18. PDF417 (Standard, Truncate, MicroPDF417)
19. Data Matrix (ECC200 Square, ECC200 Rectangular)
20. Aztec

Numbering

Print via P-touch Editor

Media

Tape Cassette

Up to 118mm

Roll Width

118mm

Functions

Cutter

No cutter. Optional: PA-CU-001 cutter

Multi-block Printing

Print via P-touch Editor

Copy Printing

Print via P-touch Editor

Mirror Printing

Print via P-touch Editor

Preview

via P-touch Editor

Memory

File Storage

64MB

Memory Buffer Size

64MB

Power Supply

Power Supply

Bundled with PA-AD-002 AC Power Adapter

Auto Power-off

Yes

AC Adaptor

PA-AD-002

Interface

Button

Power, Feed, Function Button+W27

Display

No

Backlight

No

Connectivity

USB

Yes

Wireless LAN

No
