Industrial Tube (Cable ID) Printer designed to meet the diverse needs of Electricians
- Print up to 36mm TZe laminated tapes width and φ 2.5 - φ 6.5 PVC Tubes
- USB connection
- Auto and Half cut function
- Twin-engine for tube and label
- Self-replaceable Tube cleaner, cutter and rollers
- Compact design
Information
Overview
Meet the first industrial tube printer series, Brother’s PT-E800T tube printer with twin engines mechanism. With only one tube printer required, switch between tubes and labels printing easily without replacing or re-inserting the supplies. PT-E800T tube printer is the only printer that can print on durable TZe laminated labels up to 36mm in width. Print up to 60mm per second on labels and 40mm per second on tubes, PT-E800T tube printer can print crisp text up to 360dpi high resolution and cut out using the Auto Full-cut and Half-cut function.
Compact in design, PT-E800T tube printer can be brought easily to any job site to accomplish any labelling tasks. PT-E800T tube printer is an essential labelling tool that can help to streamline all the identification and cable marking needs of the Electricians and Cable installers while delivering superior performance, achieving efficiency, and productivity.

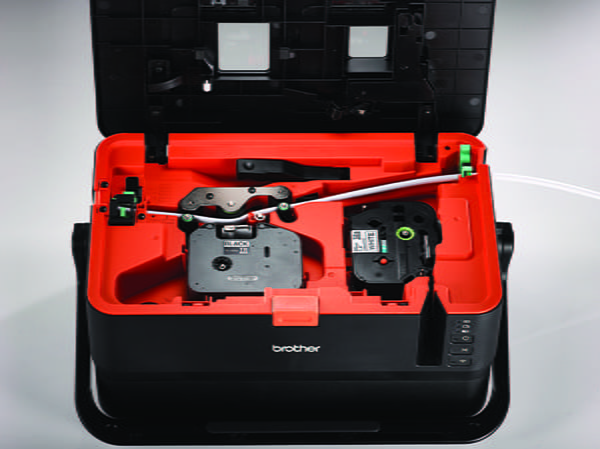

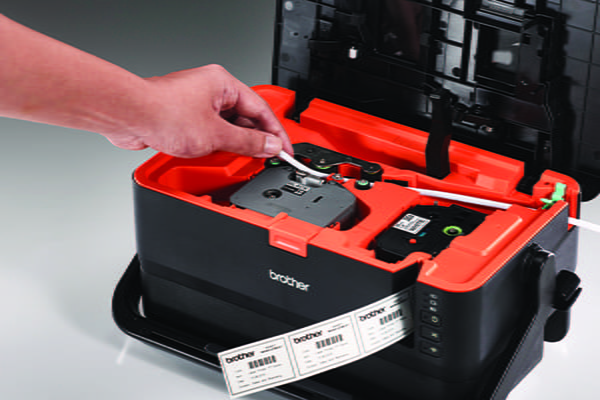

Twin Engine
With a twin-engine mechanism, switch between tubes and labels printing without replacing or re-inserting supplies. This will lead to convenience as neither of the supplies needs to be removed during printing.
A variety of media width
Print on TZe laminated labels widths:
- 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Print on Self-laminating labels widths:
- 24mm, 36mm
Print on Flag Die-cut label:
- 21mm x 45mm x 72pcs
Print on Heat Shrink tube (HSe) widths (Shrink ratio: 3:1):
- 5.2mm, 9.0mm, 11.2mm, 21mm, 31mm
Print on PVC tubes diameter:
- Ø 2.5mm – Ø 6.5mm

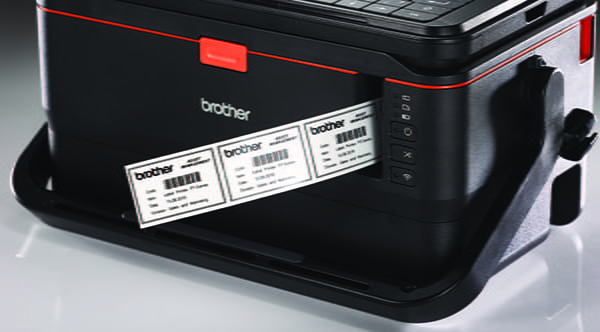

Maximum Printability
With additional print height, print more on each label which will improve the legibility of the text.

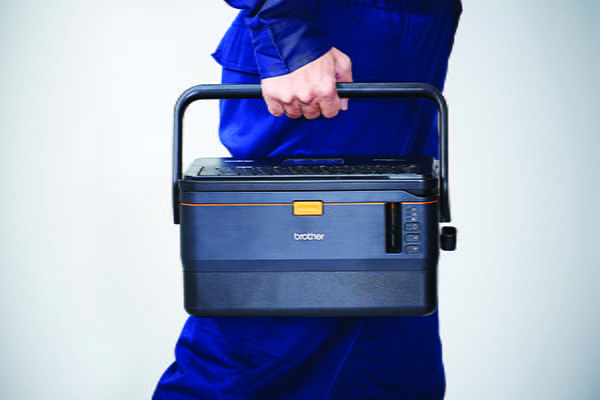

Perfectly Portable
Get the tube printer working whenever and wherever required with a Rechargeable Li-ion battery* installed.
*Purchase of Rechargeable Li-ion battery and battery base required
Zero Fuss
Worn-out parts can be easily replaced by yourself in a few quick steps which saves time.
P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via a USB connection with a PC or Mac OS® system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.
Durable TZe laminated label
Brother’s TZe laminated tapes have been rigorously tested to withstand even the harshest conditions. With excellent resistance to water, abrasion, chemicals, and extreme temperature, TZe laminated labels remain legible over time. These labels are easy to peel, and stick and come in a variety of colours, widths, and sizes to suit any application.
Specifications
Basic Specs
Keyboard
No Keyboard
Media Type
TZe tape, HSe Heat shrink tube, FLe tape
Available Tape Widths
TZe: 3.5, 6, 9, 12, 18, 24, 36mm,
HSe: 5.8, 8.8, 11.7, 17.7, 23.6mm,
FLe 21mm
Product Dimensions (Width X Depth X Height)
338 mm × 188 mm × 155 mm
Weight
3.8 kg
Print Speed
Tube printing: 40mm/sec
Label printing: 60mm/sec
Warranty
1 Year Carry in Warranty
Resolution
360 dpi
No. Of Printable Lines
Tube: 2 lines
Label: 17 lines
Number of Symbols
No
Barcode
Print via P-touch Editor
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB version 2.0 (Full Speed)
Media
Maximum Tape Width
Up to 36 mm
Functions
Cutter
Auto and half cut
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
No
Memory Buffer Size
No
Power
Power Source
Optional: PA-BB-003 rechargeable Li-ion battery base and PA-BT-4000LI rechargeable Li-ion battery, Bundled with AD-9100ESA AC Power Adapter
Auto Power-Off
Yes
