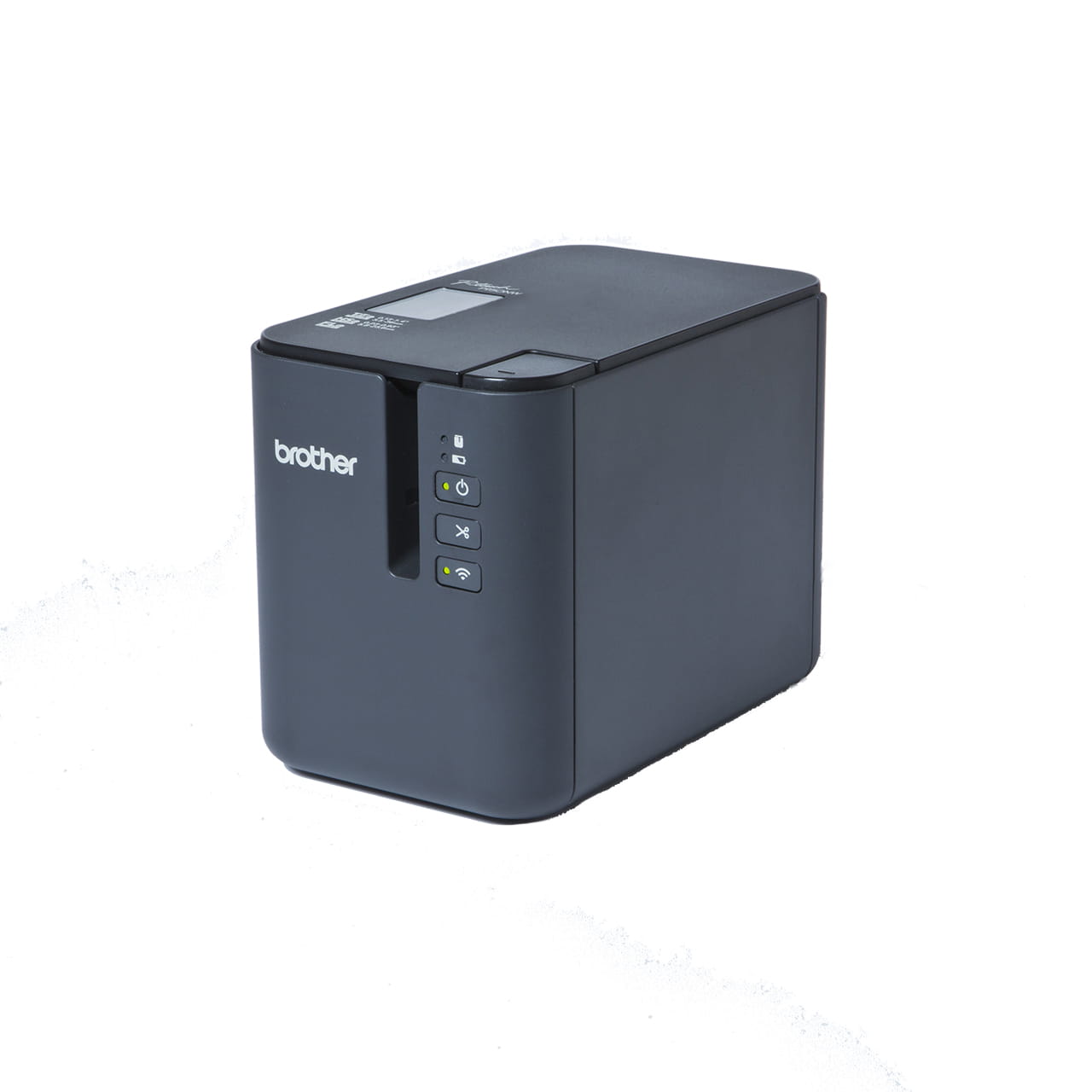

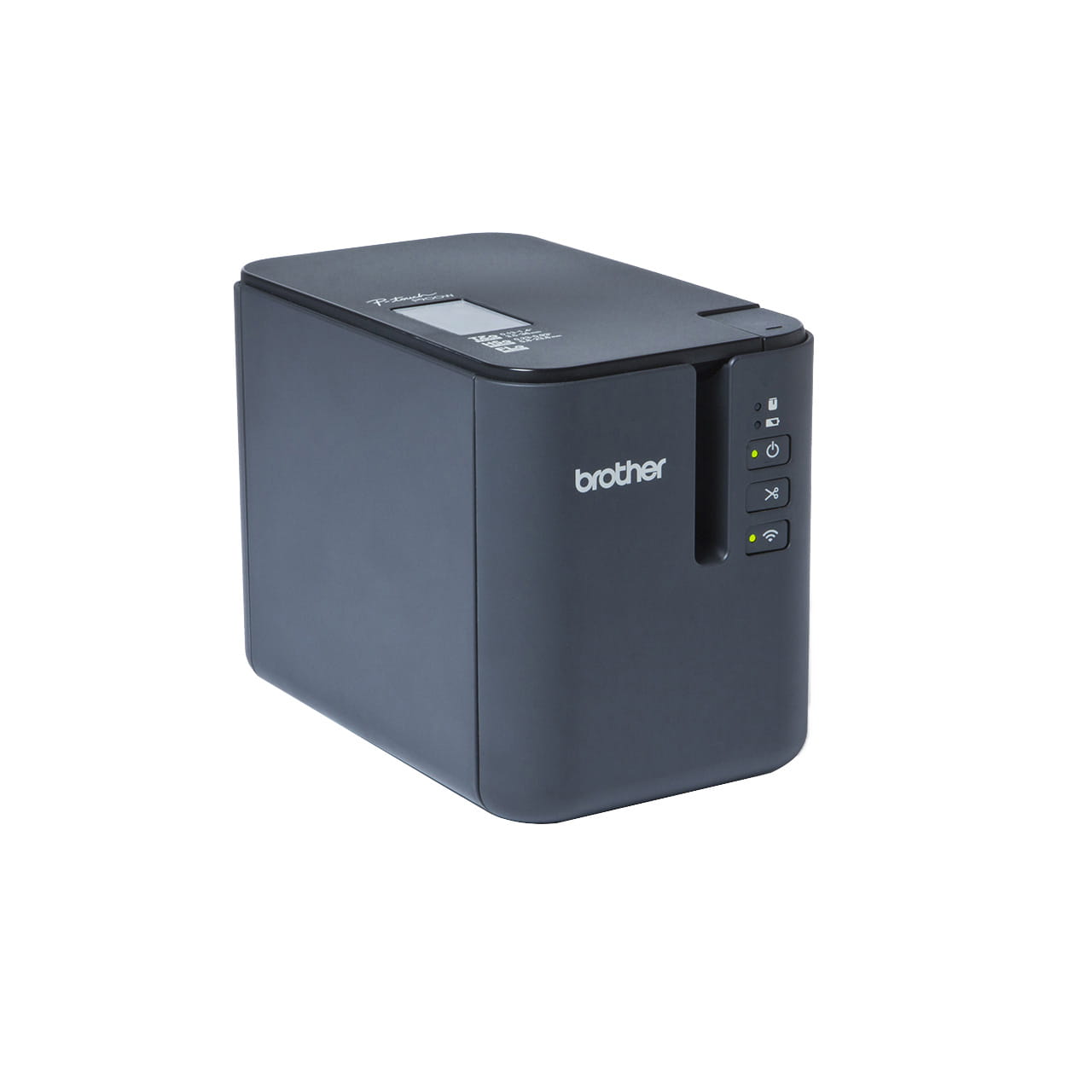

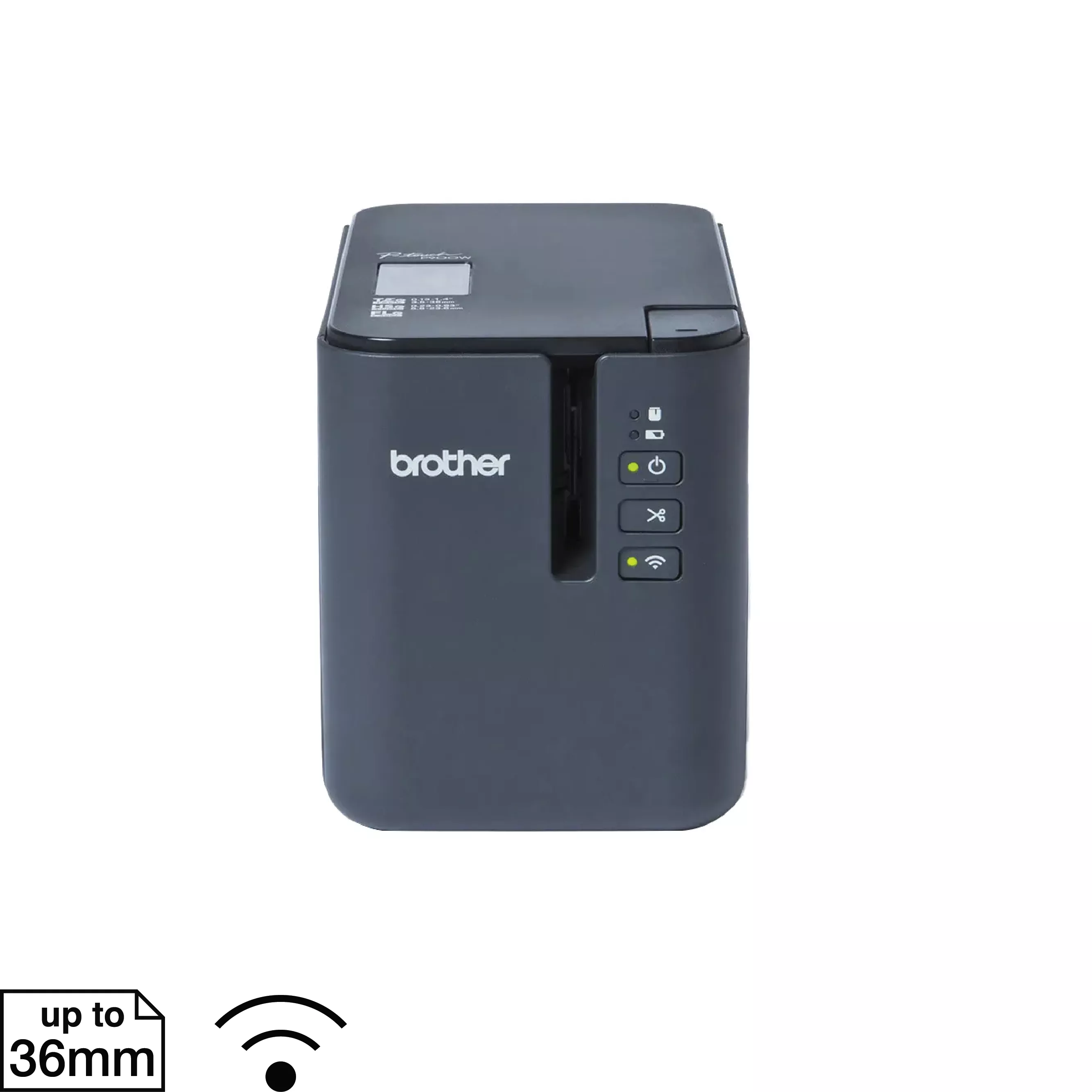

Industrial Wireless Network Label Printer
- Print up to 36mm TZe laminated tapes width
- USB and WiFi connection
- Auto and Half cut function
- High print resolution up to 360dpi x 720dpi
- Fast print speed of up to 60mm per second
- Print images, barcodes, frames and imported database
Information
Overview
Print up to 60mm per second fast print speed and up to 360dpi high print resolution, Brother’s PT-P900W Professional label printer can print durable labels via a USB or Wireless connection to suit any office application.
A variety of label width
Print on TZe laminated labels widths:
- 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Print on Self-laminating labels widths:
- 24mm, 36mm
Print on Flag Die-cut label width:
- 21mm x 45mm x 72pcs
Print on Heat Shrink tube (HSe) widths (Shrink ratio: 3:1):
- 5.2mm, 9.0mm, 11.2mm, 21mm, 31mm

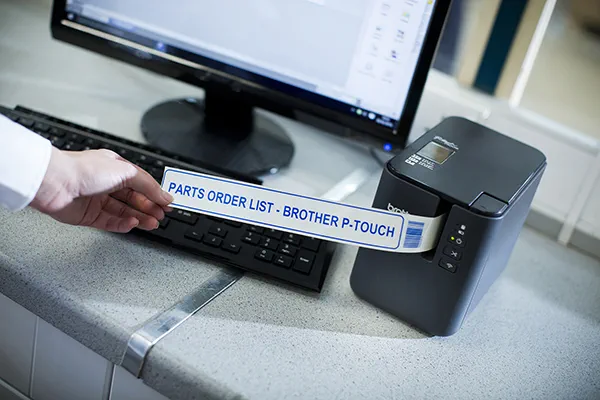

Advanced label cutter function
Comes with an advanced label cutter (automatic and half-cut) with an easy-peel function to print labels in a long strip, and keep them in the correct sequence.
Mobile printing
Effortlessly create and print labels from a mobile app with a mobile device via Wireless connection anytime, anywhere.

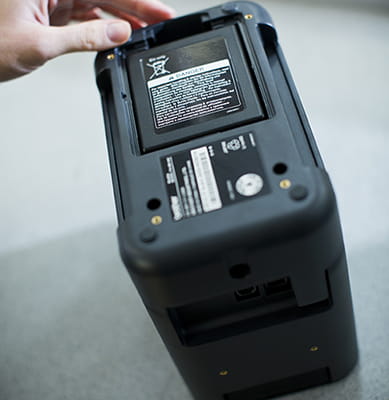

Rechargeable Li-ion battery
With a Rechargeable Li-ion battery* option that can be mounted on the base of PT-P900W label printer, labels can be printed without any power source. This solution is ideal for use on carts or for printing food labels and exhibition badges onsite.
*Purchase of the Rechargeable Li-ion battery and battery base required
iPrint&Label mobile app
Brother’s P-touch iPrint&Label is a complimentary mobile app that enables easy label creation and printing from Apple® or Android™ devices via a Wireless connection with PT-P900W label printer.
Create labels using Brother’s P-touch Editor software and share them with a mobile device to print, save, or edit on iPrint&Label mobile app for a fully integrated solution.

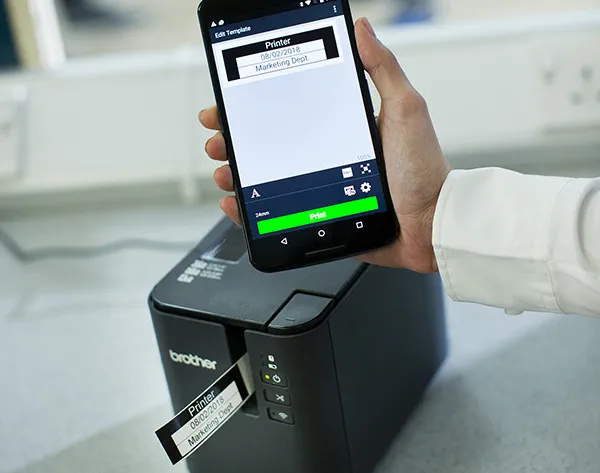

Pro Label Tool mobile app
Select from the pre-defined templates from the complimentary Brother’s Pro Label Tool mobile app to create and print labels with a smartphone connected wirelessly to PT-P900W label printer.
Pro Label Tool mobile app can also support database connection where a database can be transferred from a computer to a mobile device and printed out via the mobile app conveniently.

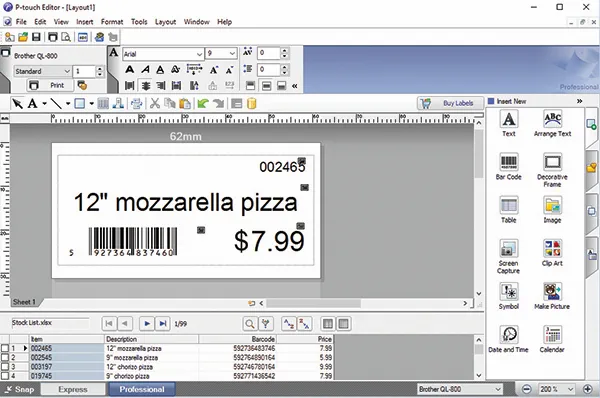

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via a USB or Wireless connection with a PC or Mac OS® system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.

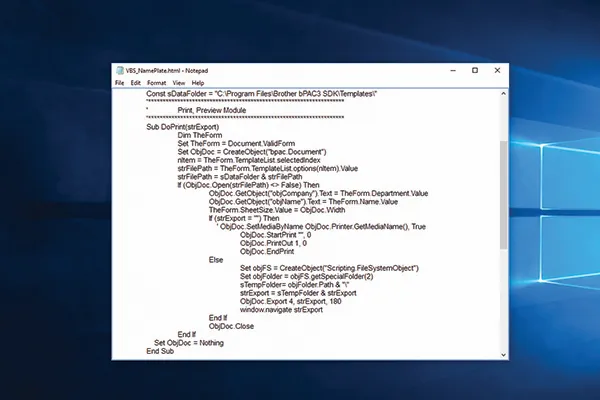

Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® or Mobile Software Development Kits (SDK) for iOS® and Android™ OS and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx
Durable TZe laminated label
Brother’s TZe laminated tapes have been rigorously tested to withstand even the harshest conditions. With excellent resistance to water, abrasion, chemicals, and extreme temperature, TZe laminated labels remain legible over time. These labels are easy to peel, and stick and come in a variety of colours, widths, and sizes to suit any application.
Specifications
Basic Specs
Keyboard
No Keyboard
Media Type
TZe tape, HSe Heat shrink tube, FLe tape
Available Tape Widths
TZe: 3.5, 6, 9, 12, 18, 24, 36mm,
HSe: 5.8, 8.8, 11.7, 17.7, 23.6mm,
FLe 21mm
Product Dimensions (Width X Depth X Height)
118 mm × 192 mm × 146 mm
Weight
1.48 kg
Print Speed
60mm/sec
Warranty
1 Year Carry in Warranty
Resolution
360 dpi
No. Of Printable Lines
36mm tape: 17 lines
24mm tape: 1 - 7 lines
18mm tape: 1 - 5 lines
12mm tape: 1 - 3 lines
9mm tape: 1 - 2 lines
6mm tape: 1 - 2 lines
3.5mm tape: 1 line
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. ITF 2/5
4. EAN-8
5. EAN-13
6. UPC-A
7. UPC-E
8. CODABAR
9. GS1-128 (UCC/EAN128)
10. QR Code
11. PDF417
12. Data Matrix
13. Aztec Code
14. RSS-14 (Standard, Truncated, Stacked, StackedOmni)
15. RSS-Limited
16. RSS Expanded (Standard, Stacked)
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB, Wireless LAN
Media
Maximum Tape Width
Up to 36 mm
Maximum Roll Width
3.5mm up to 36mm
Functions
Cutter
Auto and half cutter
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
No
Memory Buffer Size
No
Power
Power Source
Optional: PA-BB-002 rechargeable Li-ion battery base and PA-BT-4000LI rechargeable Li-ion battery, Bundled with AD-9100ESA AC Power Adapter
Auto Power-Off
Yes
