Reliable multifunction printer with convenient 2-sided printing
- A4 print speed up to 17 ipm (Black)/ 16.5 ipm (Colour)
- WiFi, AirPrint, Mopria, WiFi Direct, USB 2.0
- Auto 2-sided (Duplex) printing, 20 sheets Auto-Document Feeder (ADF), 1 line LCD
- Full ink bottles included. Yield up to 7500/5000 pages (black/colour)*
- Compatible with Mobile Connect app
- 3 years or 30,000 pages carry-in warranty included**
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Inkjet Printer

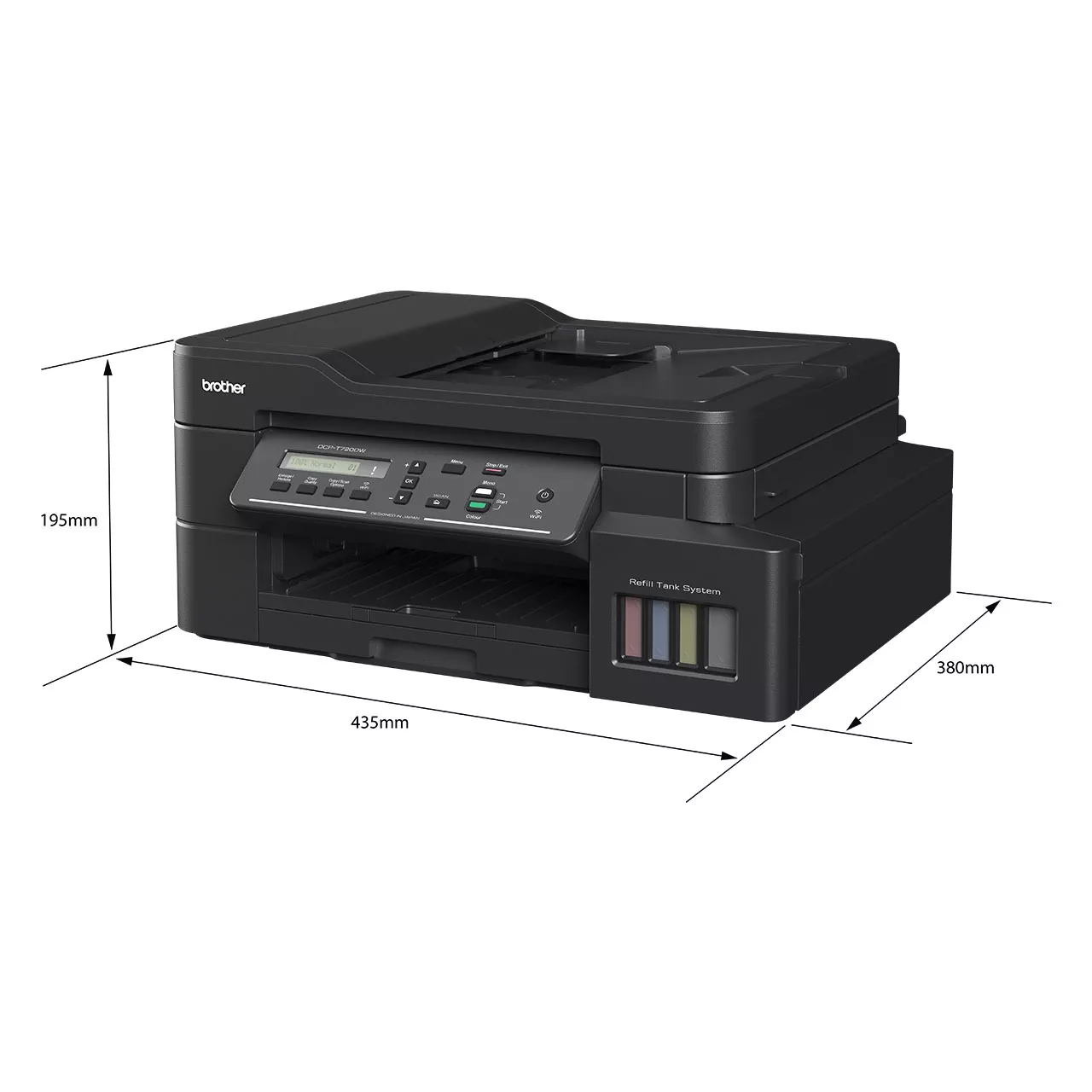

Product Dimensions (Width X Depth X Height)
435 mm × 380 mm × 195 mm
Weight
8.7 kg
Print Speed
17.0/16.5ipm
Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Paper Size
A4, Letter, Executive, A5, A6, Photo 4"x6", Indexcard 5"x8", Photo 5"x7", C5 Envelope, Com-10, DL Envelope, Monarch, Photo-3.5"x5"
Maximum Paper Capacity
150 sheets (80 gsm, plain paper)
Resolution
Up to 1,200 x 6,000 dpi
Borderless
A4, Letter, Executive, A5, A6, Photo 4"x6", Indexcard 5"x8", Photo 5"x7", Photo-3.5"x5"
2-Sided (Duplex) - Printing Paper Type
Plain, Recycled
2-Sided (Duplex) - Paper Size
Paper handling
Tray #1 - Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Tray #1 - Maximum Paper Weight
64 to 220 gsm (17 to 58 lb.)
Tray #1 - Maximum Paper Capacity
150 sheets (80 gsm, plain paper)
Tray #1 - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, B5 (JIS), A5, B6 (JIS), A6, C5 Envelope, Com-10, DL Envelope, Monarch, Photo (10x15cm/4x6"), Photo 2L (13x18cm/5x7"), Index card (13x20cm/5x8")
(Legal, Mexico Legal, India Legal, Folio, B5 (JIS) and B6 (JIS) size paper are supported only in some countries.)
Manual Feed Slot - Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Manual Feed Slot - Maximum Paper Weight
64 to 300 gsm (17 to 79 lb.)
Manual Feed Slot - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, B5 (JIS), A5, B6 (JIS), A6, C5 Envelope, Com-10, DL Envelope, Monarch, Photo (10x15cm/4x6"), Photo L (9x13cm/3.5x5"), Photo 2L (13x18cm/5x7"), Index card (13x20cm/5x8")
(Legal, Mexico Legal, India Legal, Folio, B5 (JIS) and B6 (JIS) size paper are supported only in some countries.)
Manual Feed Slot - Maximum Paper Capacity
1 sheet
Automatic Document Feeder (ADF) Maximum Paper Capacity
20 pages (80 gsm, plain paper)
Paper Output
Up to 50 sheets (80 gsm, plain paper)
Copy
Colour/ Monochrome
Yes
Yes
Multiple Copies
Up to 99 pages
Resolution
Print: Max. 1200x2400 dpi, Scan: Max. 1200x600 dpi
Scan
Colour / Monochrome
Yes / Yes
Resolution - Interpolated
Up to 19200x19200 dpi with Scanner Utility (For Window 7/8/10 only)
Resolution - Scanner Glass
Up to 1,200 dpi x 2,400 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 1,200 dpi x 600 dpi
Document Scanning Width / Length - Scanner Glass
Width: Up to 213.9 mm (8.42")
Length: Up to 295 mm (11.61")
Document Scanning Width / Length - Automatic Document Feeder (ADF)
Width: Up to 213.9 mm (8.42")
Length: Up to 353.6 mm (13.92")
1-Sided (Simplex) - Scan Speed
Up to 12.0 (Mono) /Up to 6.0 (Colour) ipm
Connectivity
WiFi Direct
Yes
Connectivity
Hi-Speed USB2.0, Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
SSID (32 characters), WEP 64/128bit, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
1 Line
Memory Capacity
128MB
Operation
Power Source
AC 220 - 240V 50/60Hz
Power Consumption - Ready
Approx. 3W
Power Consumption - Sleep
Approx. 0.8W
Power Consumption - Power Off
Approx. 0.2W
Noise Level
Approx 53.5dB (A)
Supported Operating Systems
Supported OS
Windows® 7 SP1/8.1/10 Server 2008/2008 R2/2012/2012 R2/2016/2019
macOS v10.13.6/10.14.x/10.15.x
(For printing and scanning from Mac, use AirPrint or download iPrint&Scan from Mac App Store. Mac driver is not provided.)
Software and Apps
Included software
BRAdmin Professional 4, IPrint&Scan
Mobile Apps
Mobile Connect
