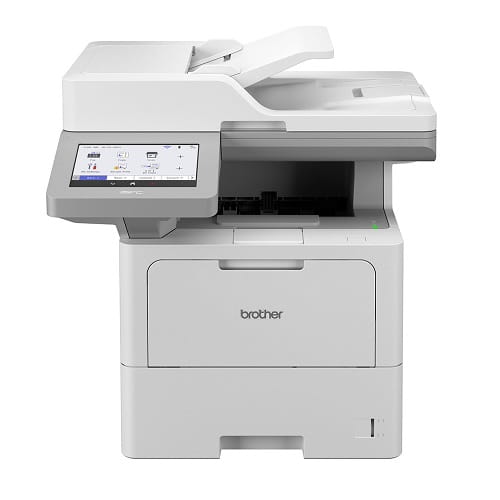

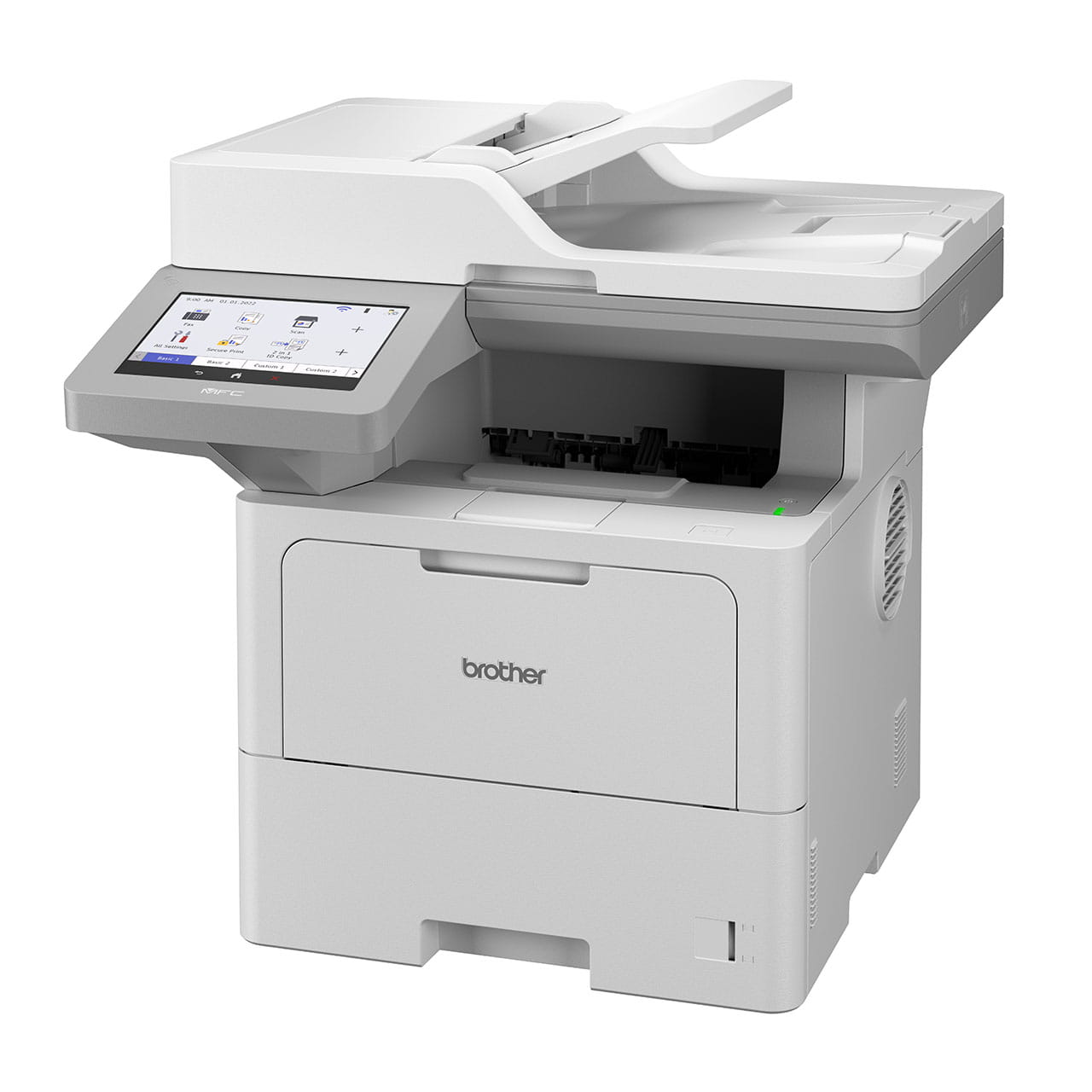

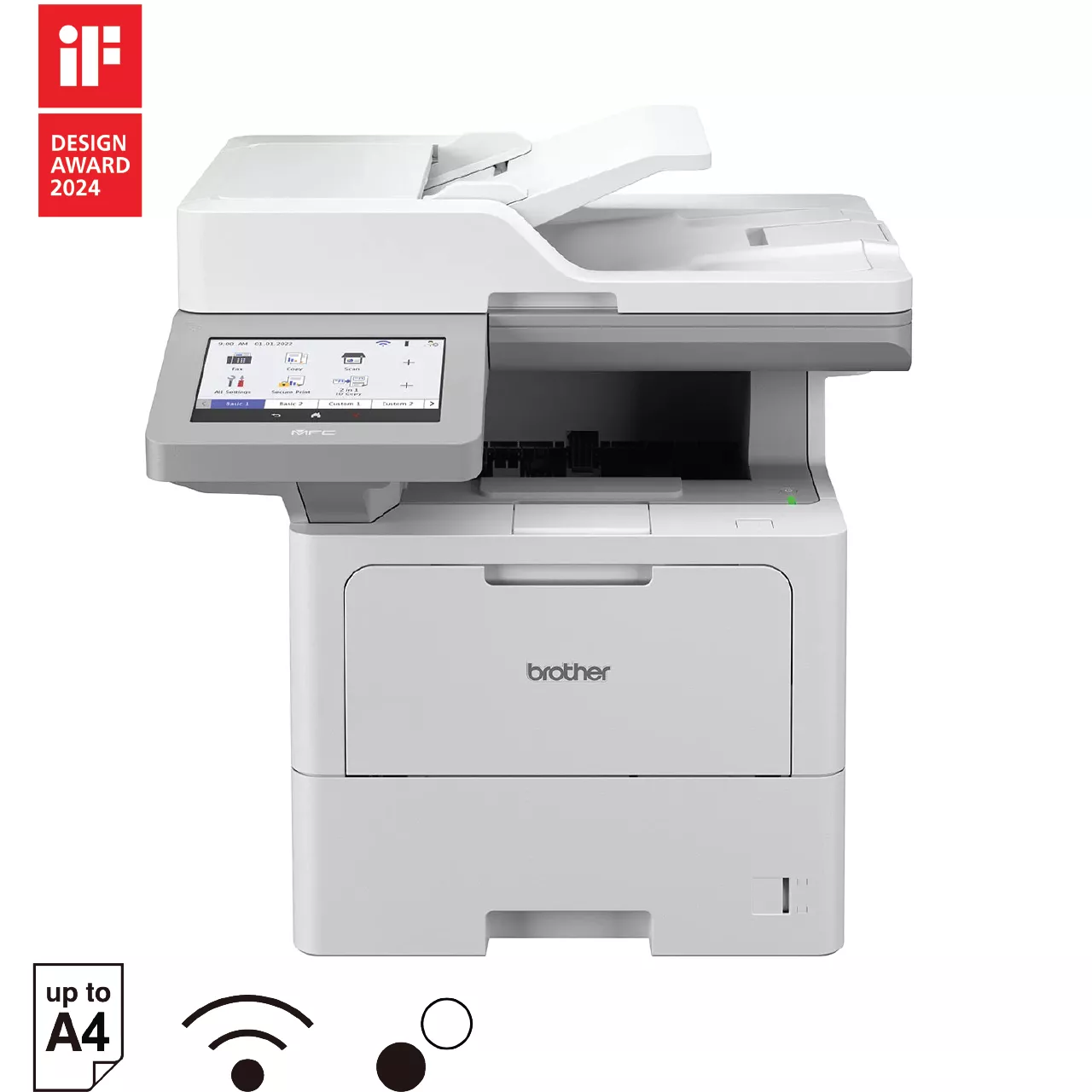

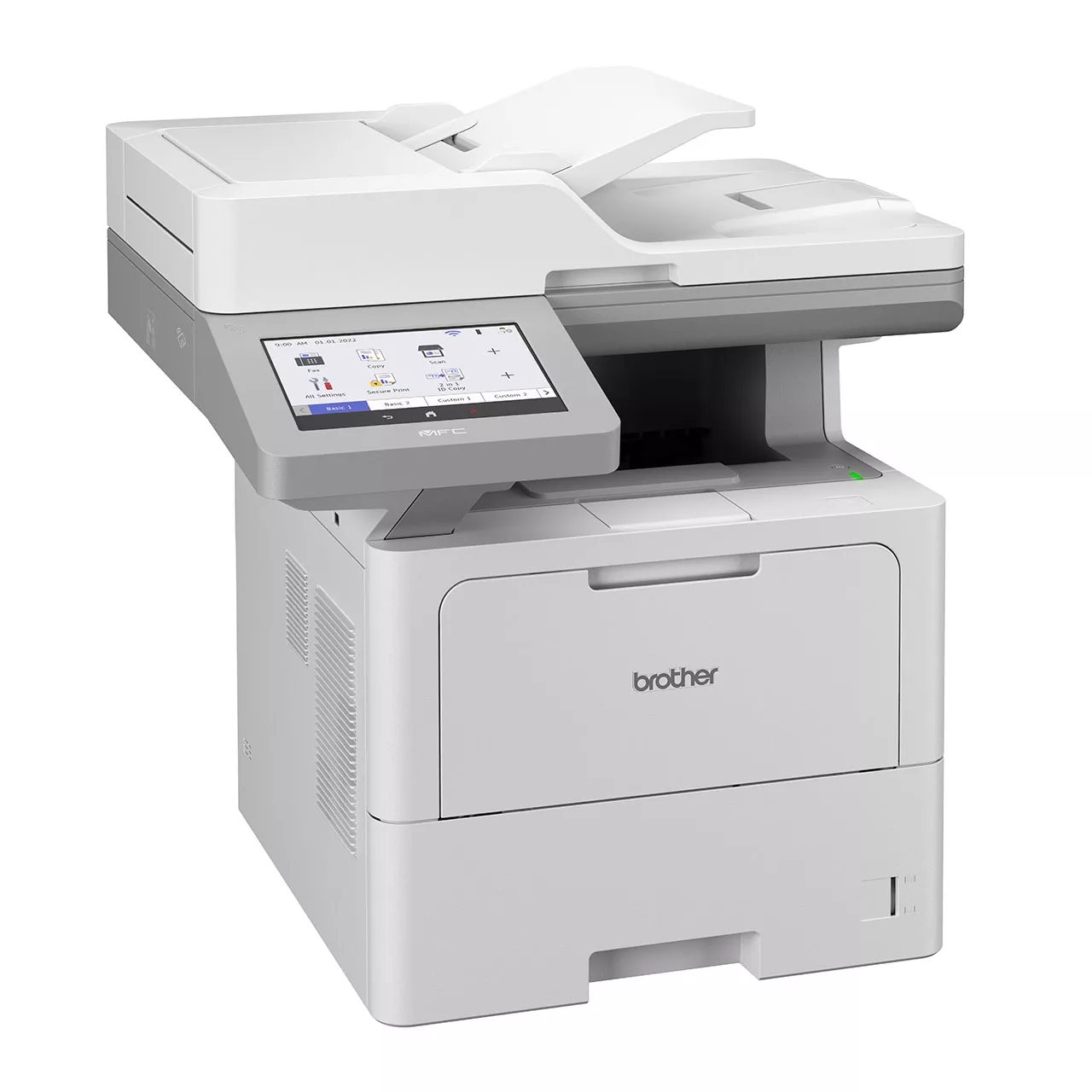

Wireless, high printing speed with 7-inch LCD touchscreen monochrome laser printer
SGD 1,908.00
- A4 print speed up to 50 ppm (Black)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, NFC card reader, USB 2.0
- Auto 2-sided (Duplex) printing, 80 sheets dual CIS Auto-Document Feeder (ADF), 7” Colour LCD touchscreen
- Full capacity toner included. Yield up to 25000 pages (black)*
- Compatible with Mobile Connect app
- 3 years on-site warranty included
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
495 mm × 495 mm × 518 mm
Weight
18.1 kg
Print Speed
Up to 50 (A4) / Up to 52 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 2,700 sheets of 80 gsm plain paper (with Added Optional Trays)
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio
(Paper sizes other than A4 are supported only in some countries.)
Paper handling
Tray #1 - Maximum Paper Weight
60 to 163 gsm (16 to 43 lb)
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #1 - Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Weight
60 to 120 gsm (16 to 32 lb)
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Weight
60 to 230 gsm (16 to 60 lb)
Multi-purpose Tray - Paper Size
Width: 69.8 to 215.9 mm (2.75" to 8.5")
Length: 127 to 355.6 mm (5" to 14")
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 80 sheets of 80 gsm plain paper
Paper Output
Up to 250 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Colour / Monochrome
N/A
Yes
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 1200 x 600 dpi
Scan
Colour / Monochrome
Yes / Yes
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Document Scanning Width / Length - Scanner Glass
Width: Up to 216 mm
Length: Up to 355.6 mm
Document Scanning Width / Length - Automatic Document Feeder (ADF)
Width: 105 to 215.9 mm
Length: 147.3 to 355.6 mm
1-Sided (Simplex) - Scan Speed
Up to 50 (Mono) / Up to 30 (Colour) ipm
2-Sided (Duplex) - Scan Speed
Up to 100 (Mono) / Up to 60 (Colour) ipm
Fax
Compatibility
ITU-T Super G3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Fax Forwarding
Yes
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
PC Fax - Sending
Yes (Mono)
PC Fax - Receiving
Yes (Mono)
Connectivity
WiFi Direct
Yes
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct), 10Base-T/100Base-TX/1000Base-T, NFC
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
7.0" Colour Touchscreen LCD 153.84 x 85.63 mm
Memory Capacity
2 GB (For Australia)
1 GB (For Korea)
2 GB (other countries)
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Printing
Approximately 710 W
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 6.7 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 10
Server 2012 / 2012 R2 / 2016 / 2019
