Professional Label Printer with Wired, Wireless and Bluetooth Connectivity
SGD 418.00
- Stand-alone Time-stamping printing function with no PC connection required for Food and Retail industry
- Auto cut function
- Print up to 62mm DK rolls width
- 110 labels per minute fast print speed
- 300 x 600dpi high print resolution
- Print Black/Red text on White labels
Information
Overview
Boasting the fastest print speed of up to 110 labels per minute and with the most connectivity options in class, Brother’s QL-820NWB Professional label printer can print on labels up to 300dpi x 600dpi high print resolution and up to 62mm label width. Comes with an automatic cutter, Brother’s DK Die-cut paper, and Continuous length label Paper and Film rolls can be trimmed to a specific length required.
QL-820NWB Professional label printer is an ideal solution that unrivalled versatility for Office, Retail, Food, Postal, Facilities and Visitor management, and many other industries.
Black and Red text printing
Draw attention to important information with Brother’s DK-22251 62mm x 15.24mm Red/Black Continuous length paper label to highlight use-by dates, allergens, and other critical information.
Flexible connectivity options
Come with the most connectivity options ranging from Bluetooth, USB, Wired and Wireless connections to choose from, QL-820NWB label printer can print labels via AirPrint® on iOS® devices or Mac OS® systems via Bluetooth or Wireless connection with AndroidTM devices.
Standalone label printing
QL-820NWB label printer has a large memory to store label templates designed in Brother’s P-touch Editor software. Label templates can be uploaded to the label printer’s memory and accessed using the integrated control panel and backlit graphic LCD. Ideal for printing current or future dates and times on labels for the Food and Retail industries.

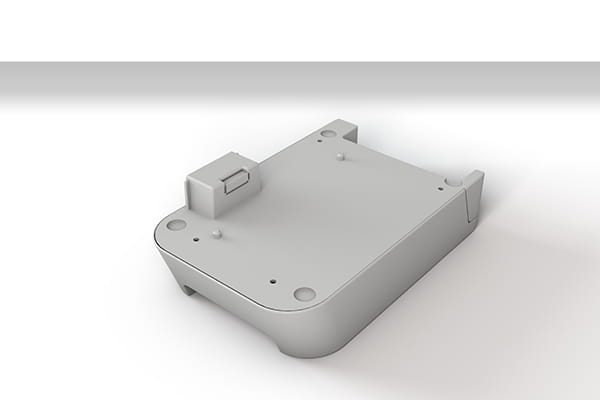

Rechargeable Li-ion battery
With a Rechargeable Li-ion battery* option that can be mounted on the base of QL-820NWB label printer, labels can be printed without any power source. This solution is ideal for use on carts or for printing food labels and exhibition badges onsite.
*Separate purchase required
iPrint&Label mobile app
Brother’s P-touch iPrint&Label is a complimentary mobile app that enables easy label creation and printing from Apple® or AndroidTM devices via Bluetooth or Wireless connection with QL-820NWB label printer.
Create labels using Brother’s P-touch Editor software and share them with a mobile device to print, save, or edit on iPrint&Label mobile app for a fully integrated solution.

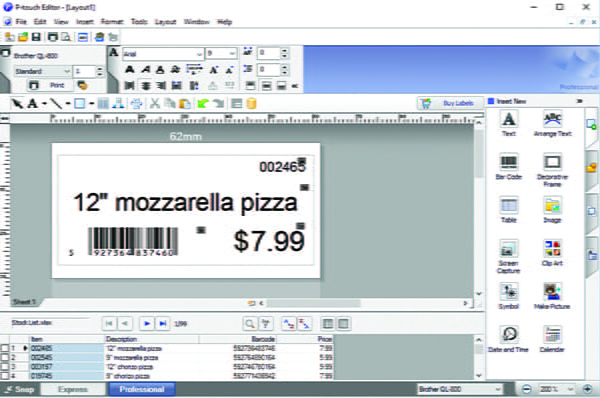

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via a Bluetooth, Ethernet, USB, or Wireless connection with a PC or Mac OS® system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.
Seamless integration

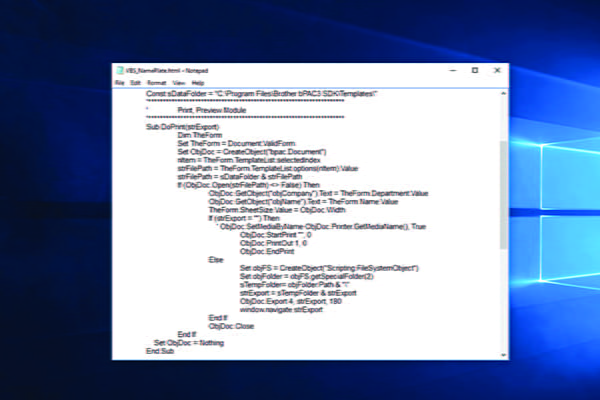

Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® or Mobile Software Development Kits (SDK) for iOS® and AndroidTM OS and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx
Remote template
update via FTP server
When QL-820NWB label printers are deployed at multiple locations, updating templates to all the label printers will be very time intensive. QL-820NWB label printers can automatically connect to a remote server using FTP. If any new templates are found, they will be updated automatically. This will help companies to save time and money while ensuring consistent operation at all remote sites.
For more information, please visit:
https://support.brother.com/g/b/faqend.aspx?c=eu_ot&lang=en%20&prod=lpql820nwbeuk&faqid=faqp00100482_000&pfs=1
Specifications
Basic Specs
Keyboard
No Keyboard
Display Type
320x120 dot graphic LCD with backlight
Media Type
DK roll
Available Tape Widths
12 - 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max 176mm/sec
Warranty
1 Year Carry in Warranty
Resolution
Standard: 300dpi × 300dpi,
High resolution mode: 300dpi × 600dpi
No. Of Printable Lines
Adjustable within 62mm width
Number of Characters
No
Number of Symbols
No
Barcode
21 barcode protocols on P-touch Editor
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Auto
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
Yes
Memory
File Storage
6MB, 255 templates
Memory Buffer Size
6MB, 255 templates
Power
Power Source
Optional: PA-BU-001 rechargeable Li-ion battery, Bundled with PA-AD-001A AC Power Adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
