Overview

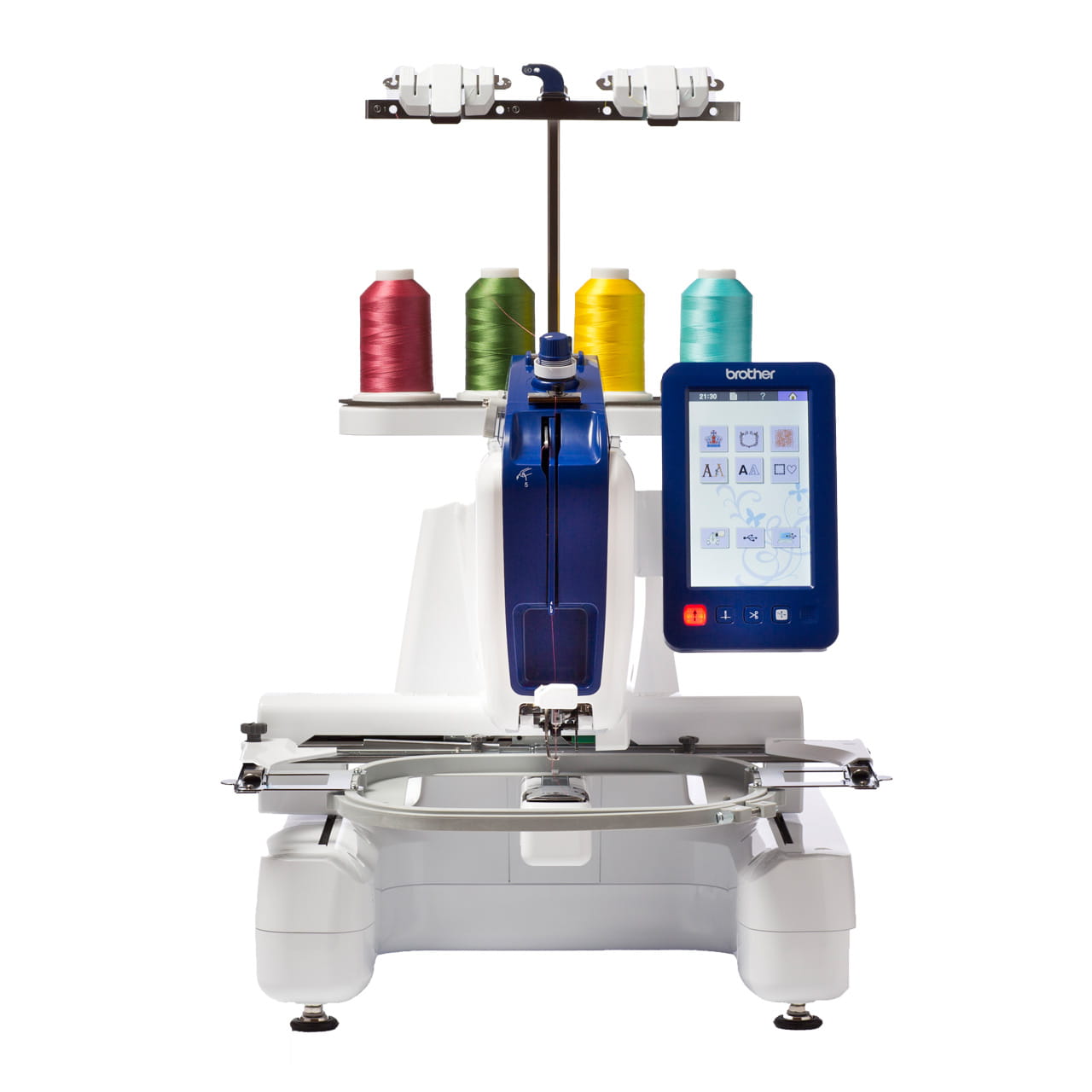

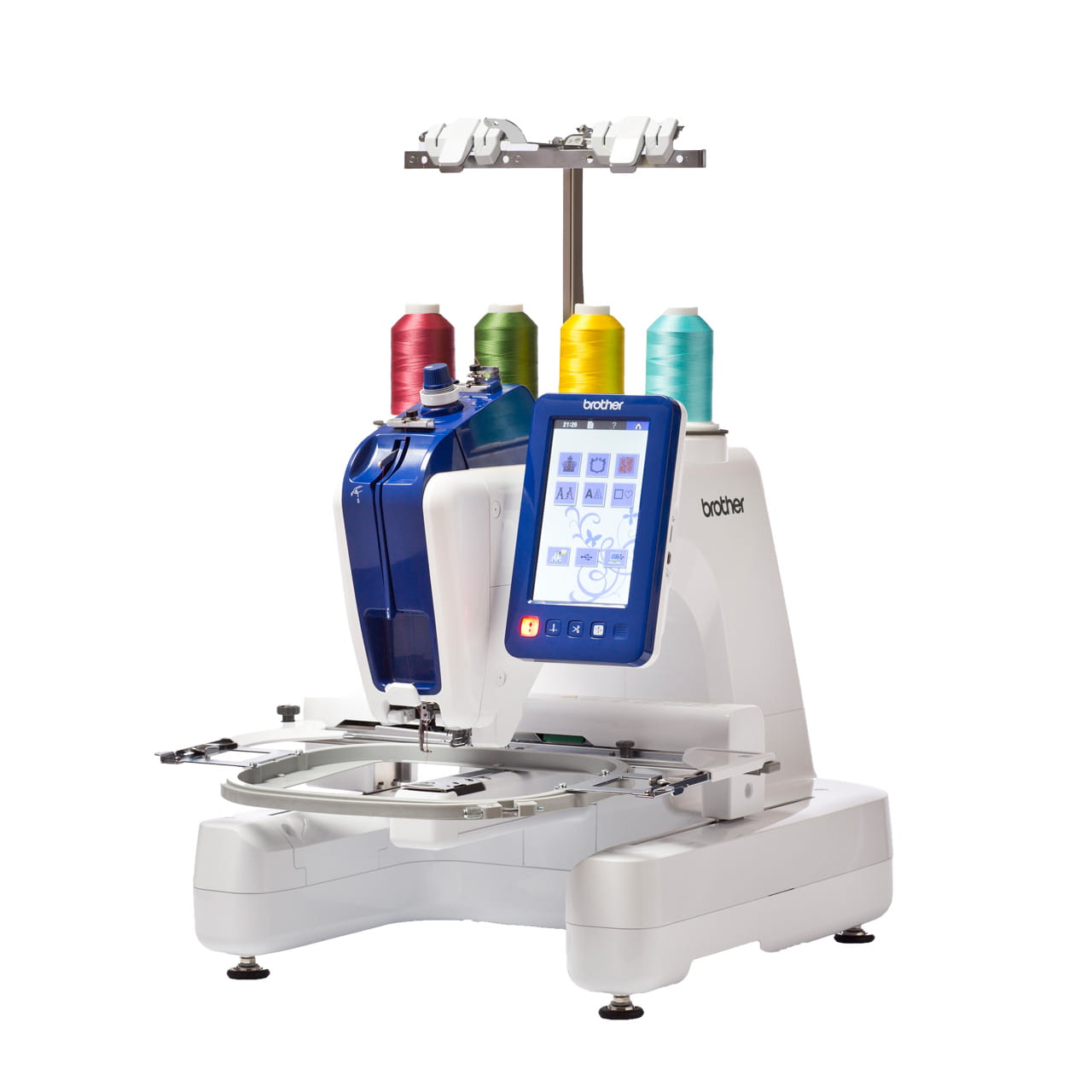

The most versatile single-needle embroidery machine
- Large 200 x 200mm (8” x 8”) embroidery area
- Up to 1000 stitches per minute
- Automatic needle threading
- Free-hand sewing (optional)
- Thread colour sorting
Features and Functions
USB Ports
Insert a USB memory stick or connect directly to your PC to send embroidery designs to the VR.
Large Colour LCD Touch Screen
Easily edit and adjust embroidery designs from the touch screen.
Single Colour Pattern Converter
Simply push a button to embroider a multi-coloured design in a single colour.
Free-arm Embroidery
Embroider on shirt pockets, sleeves, jeans pockets, etc.
LED Pointer for Perfect Needle Positioning
Position jobs faster and more accurately than ever with the LED pointer.
405 Built-in Patterns
Wide variety of built-in designs including Greek and floral alphabets, decorative and quilt patterns.
20 Built-in Fonts
A wide range of built-in fonts to personalise your projects.
Thread Colour Sorting
Adjust the order in which multi-colour embroidery designs are stitched - reducing colour changes and minimising embroidery time.
4-spool Thread Stand
The VR is equipped with a 4-spool thread stand. Ideal for quick thread changes.
Automatic Needle Threading
The most difficult needle threading process can be performed effortlessly using the Automatic Needle Threading feature.
Numerous Embroidery Business Opportunities with the VR
Sports
Shop
Business
Specifications
Basic Specs
Bobbin Type
Vertical
Needle Threader
Yes
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Optional
Start Stop Button
Yes
Thread Tension Control
Manual
F.A.S.T Bobbin Winding System
Separate bobbin winding
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Warranty
2 Years on-site warranty
Embroidery Features Spec
Embroidery Speed (Max)
1000 spm
Embroidery Area Max
200mm x 200mm
Built In Embroidery Patterns
405
Build In Embroidery Font
20
On Screen Editing
Yes
USB
Yes (Host/Slave)
Jump Stitch & Wiper Function
Yes
Camera Function
LED pointer
Needle number for Embroidery
1
