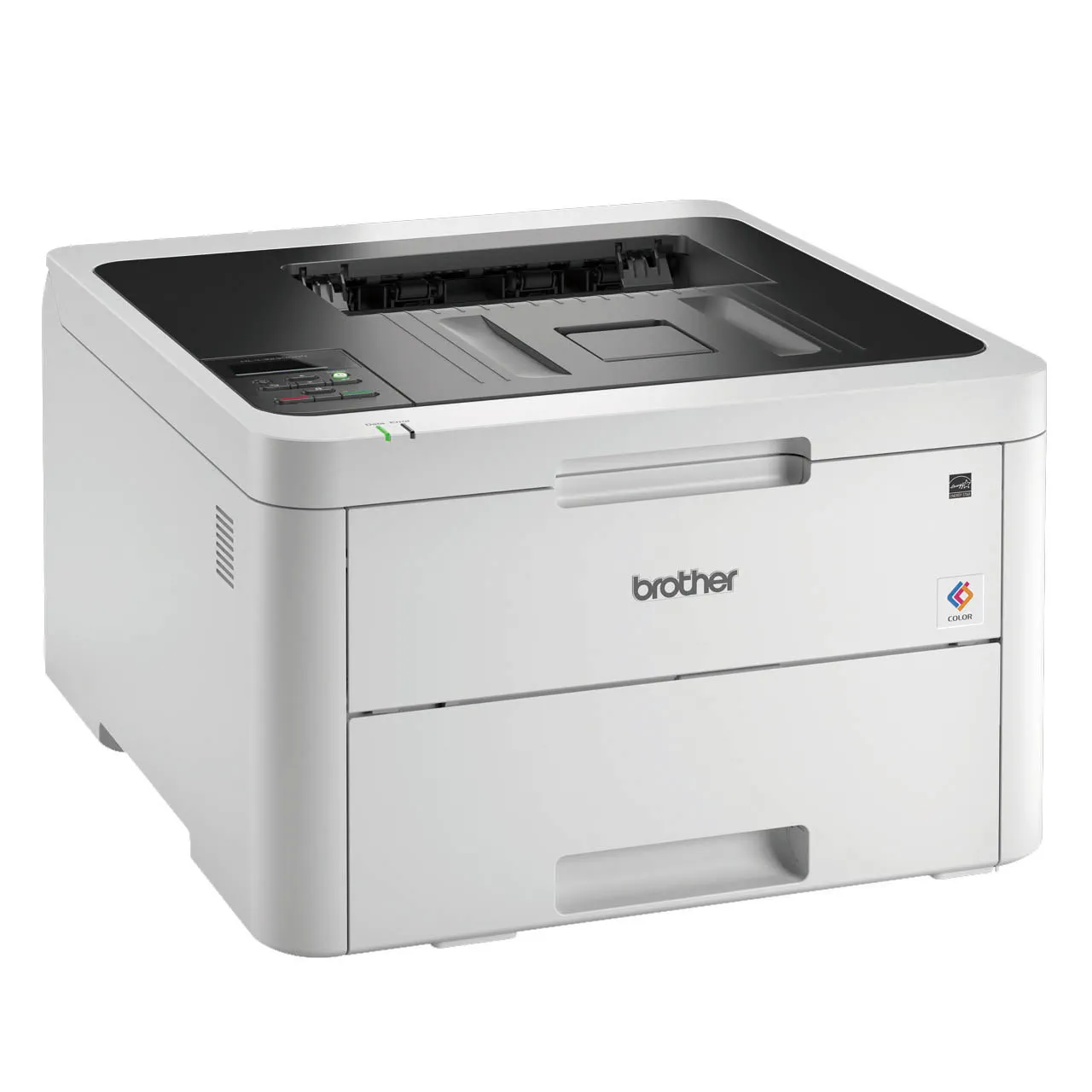

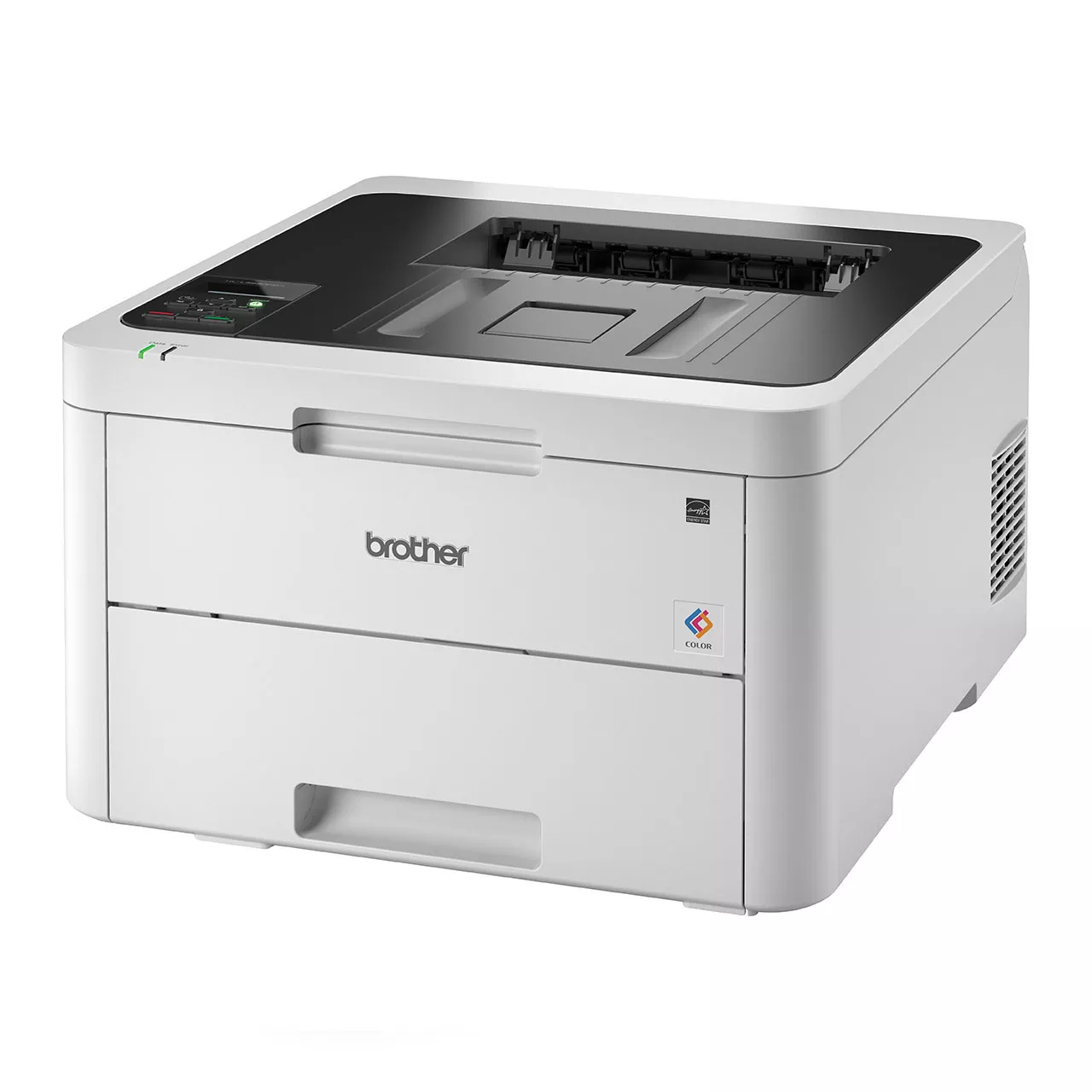

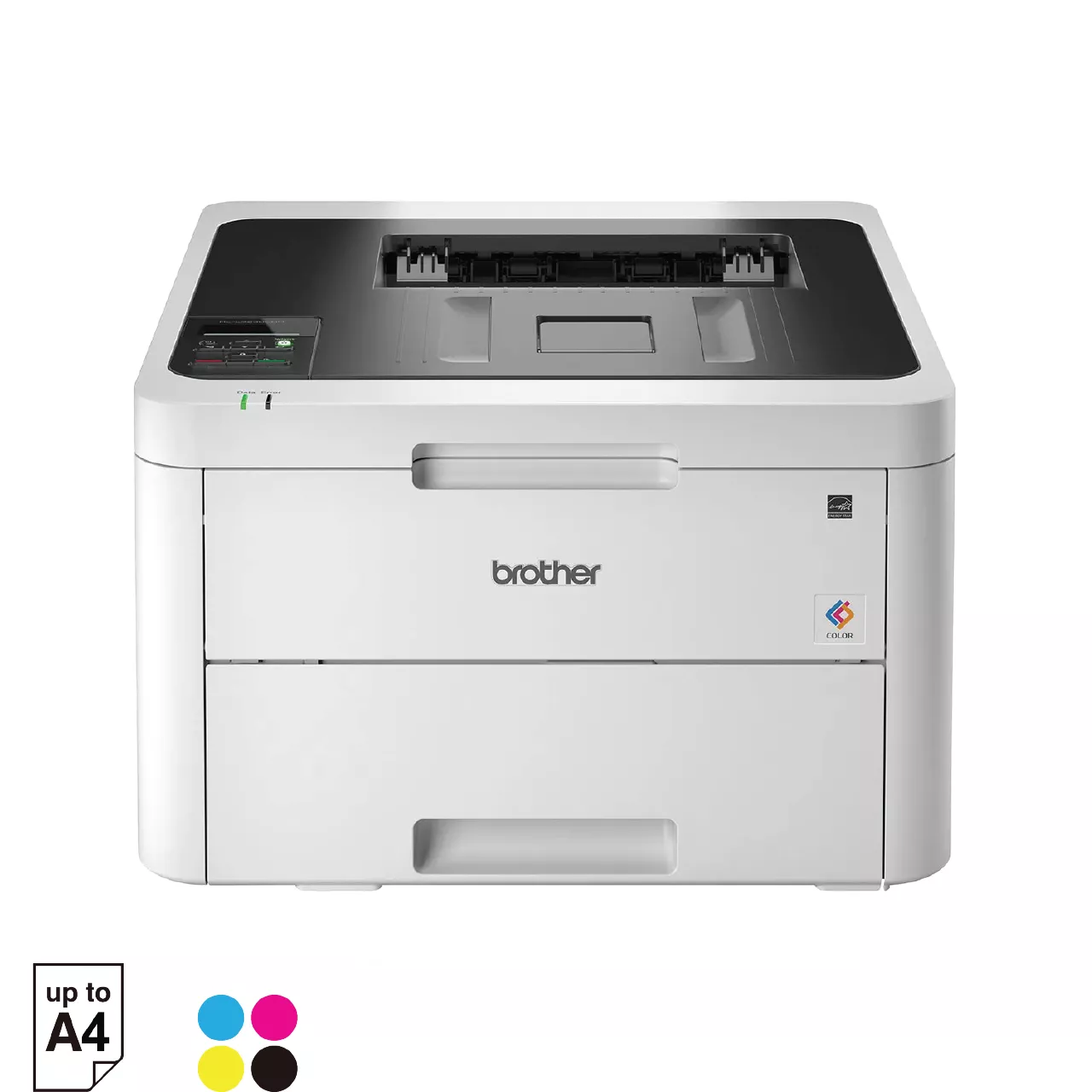

HL-L3230CDN Laser Printer
Discontinued Product
Discontinued Product
Discontinued Product
Recommended Replacement Product: HL-L3240CDW Laser Printer
Colour LED Printer with Network Connectivity, Automatic 2-sided Colour Print, High Productivity with Fast Print Speeds, Direct Mobile Print, Low Cost Quality Print Resolution with Affordable Toner
- A4 print speed up to 18 ppm (Black/Colour)
- AirPrint, Mopria, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 1-line LCD
- Full capacity toner included. Yield up to 1000/1000 pages (black/colour)*
- Compatible with Brother iPrint&Scan mobile app
- 3 years on-site warranty included
Information
Overview
- Fast colour print speed: up to 18ppm
- First page out in less than 15.5 seconds
- 250-sheet default paper tray
- Automatic 2-sided printing
- Flexible connectivity
Remarkable Productivity
Fast Print Speeds
Boost your productivity with fast colour print speeds of up to 18ppm and first printout times of less than 15.5 seconds.
Comprehensive Paper Handling
Handle a greater variety of papers up to 163gsm with the single-sheet manual feed slot, and efficiently handle high print volumes with the 250-sheet default paper tray.
Optimise Cost-Savings
Cut Your Paper Waste by 50%
Reduce your paper wastage and expenses with automatic duplex printing.
Lower Your Running Costs
Enjoy lower cost-per-page with high-yield toner cartridges, and use less toner while producing brilliant printouts with Toner Save Mode.
Simplify Connectivity
Built-in Ethernet
Share your Brother laser printer with multiple users on your network via its built-in Ethernet.
Print from Your Mobile
Connect your mobile devices and start printing via Brother iPrint&Scan and other compatible mobile applications.
Specifications
Basic Specs
Functions
Printer Type
Color LED Printer
Product Dimensions (Width X Depth X Height)
410 mm × 461 mm × 252 mm
Weight
18.3 kg
Print Speed
Up to 18/19 ppm (A4/LTR)
Paper Size
A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal
Maximum Paper Capacity
Max. 250 sheets (80 gsm)
Warranty
36 Months on-site warranty
Resolution
600 x 600 dpi, 2,400 dpi (600 x 2400) quality
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Max. 250 sheets, 80 gsm plain paper
Manual Feed Slot - Paper Type
60 to 163g/m2
Manual Feed Slot - Maximum Paper Capacity
1 sheet
Paper Output
Max. 150 sheets Face Down
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX
Display & Memory
Display Type
16 characters x 1 line
Memory Capacity
256 MB
Operation
Power Source
220V to 240V AC 50/60Hz
Power Consumption - Ready
Approx. 75 W
Power Consumption - Sleep
Approx. 8.8 W
Power Consumption - Power Off
Approx. 0.04 W
Noise Level
Max. 45 dB(A)
Supported Operating Systems
Supported OS
Windows® Server 2008, Server 2008 R2, 7 SP1, 8, 8.1, Server 2012, Server 2012 R2, 10, Server 2016
Mac OS v10.11.6/10.12.x/10.13.x
CUPS, LPD/LPRng (x86/x64 environment)
