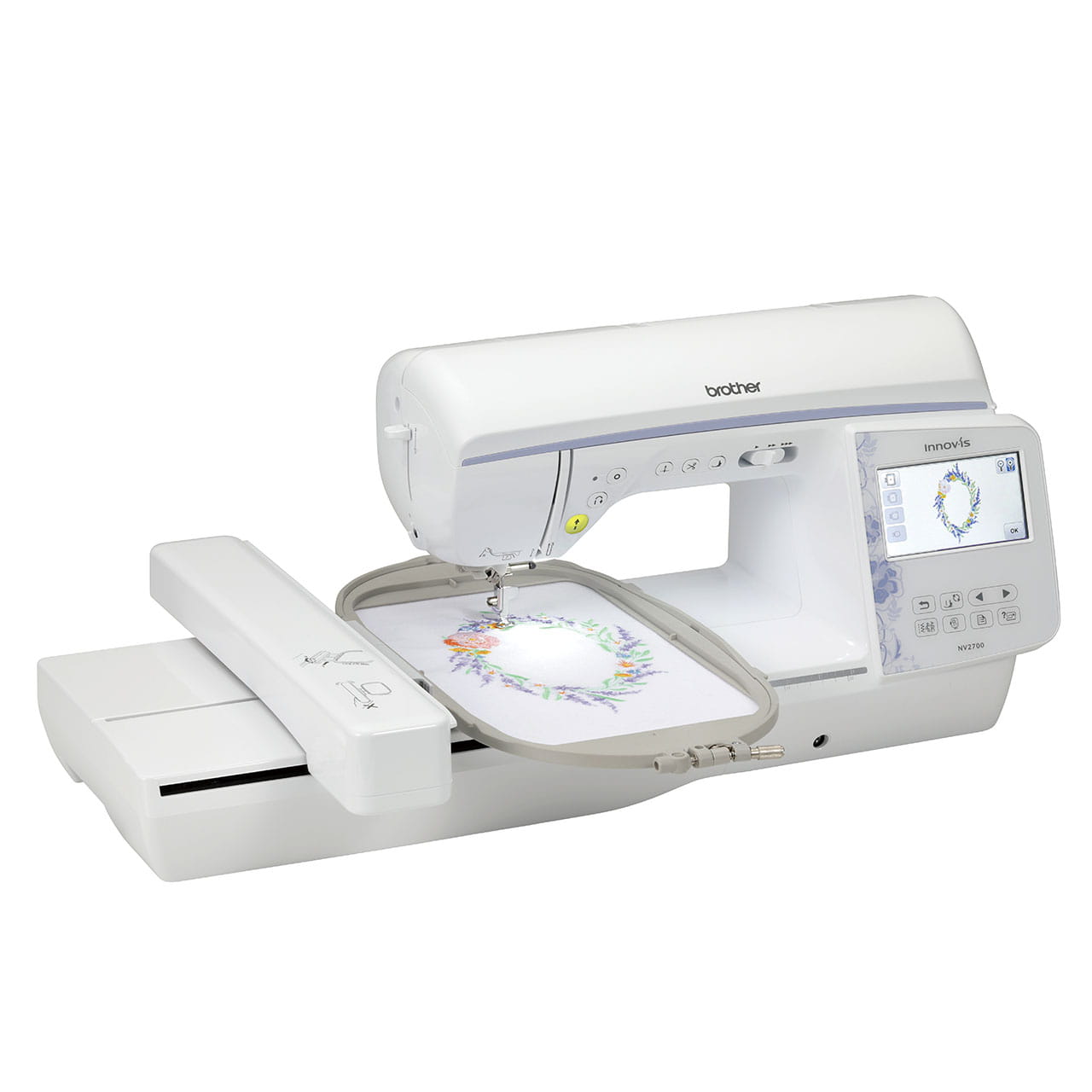

Import design files via Wi-Fi with this versatile combo machine
SGD 3,838.00
- Large Embroidery Area (160mm x 260mm)
- Full Colour Touch Screen Control
- Free App to transfer files
- Advanced Needle Threading System
- 258 built-in embroidery designs, 291 built-in stitches
- Automatic Height Adjuster
Information

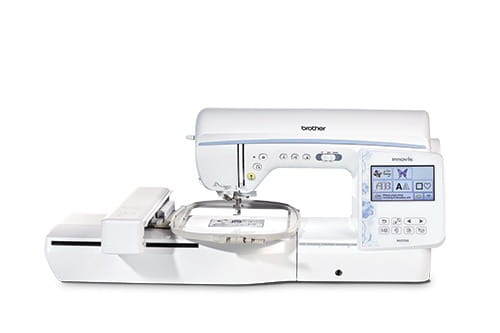

Overview
Perfect Needle Positioning
Ensure perfect pattern placement with crosshair led pointer. You can position and align the embroidery patterns in a simple and accurate way.

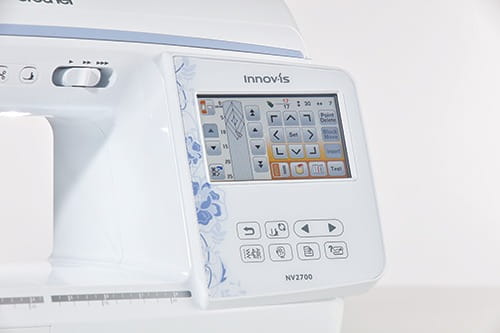

4.9” HD LCD Touchscreen
Navigate the easy-to-use interface and see your design in full color on the crystal clear display.

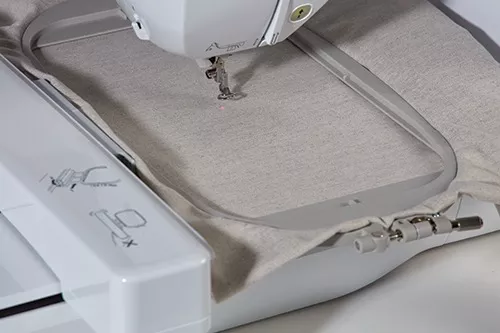

Large embroidery area
Equipped with an embroidery unit with a large 260 * 160mm working area, give you plenty of room to explore new designs.
Features
Always at Your Side
To get your creativity flowing, we’ve produced some ‘how-to’ videos to help and inspire you, find them on the Brother Support App.

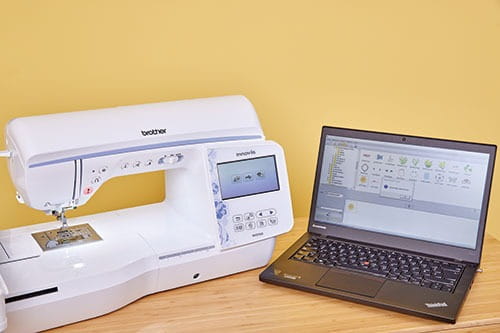

Quick & Easy Data Transfer
Send designs wirelessly from your PC to your machine when connected to a wireless network using Design Database Transer*.
*Compatible with Window OS devices only
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Advanced
Thread Cutter
Auto (Button)
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Case
Soft cover
Wide Table
No
Warranty
2 Years on-site warranty
Sewing Features Spec
Stitch No
291
Sewing Speed
850
Stitch pattern selection
Touch Panel
Maximum Stitch Width
7mm
Buttonhole Sewing
10 one-step
Number of Buttonholes
10
Drop Feed
Manual
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
850
Embroidery Area Max
260 x 160 mm
Built In Embroidery Patterns
258
Build In Embroidery Font
13
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Camera Function
No
Needle number for Embroidery
1
Overlocker Spec
Maximum Sewing Speed (stitch per minute)
850
Stitch length(mm)
5mm
Differential Feed(Stitch Width)
7mm
