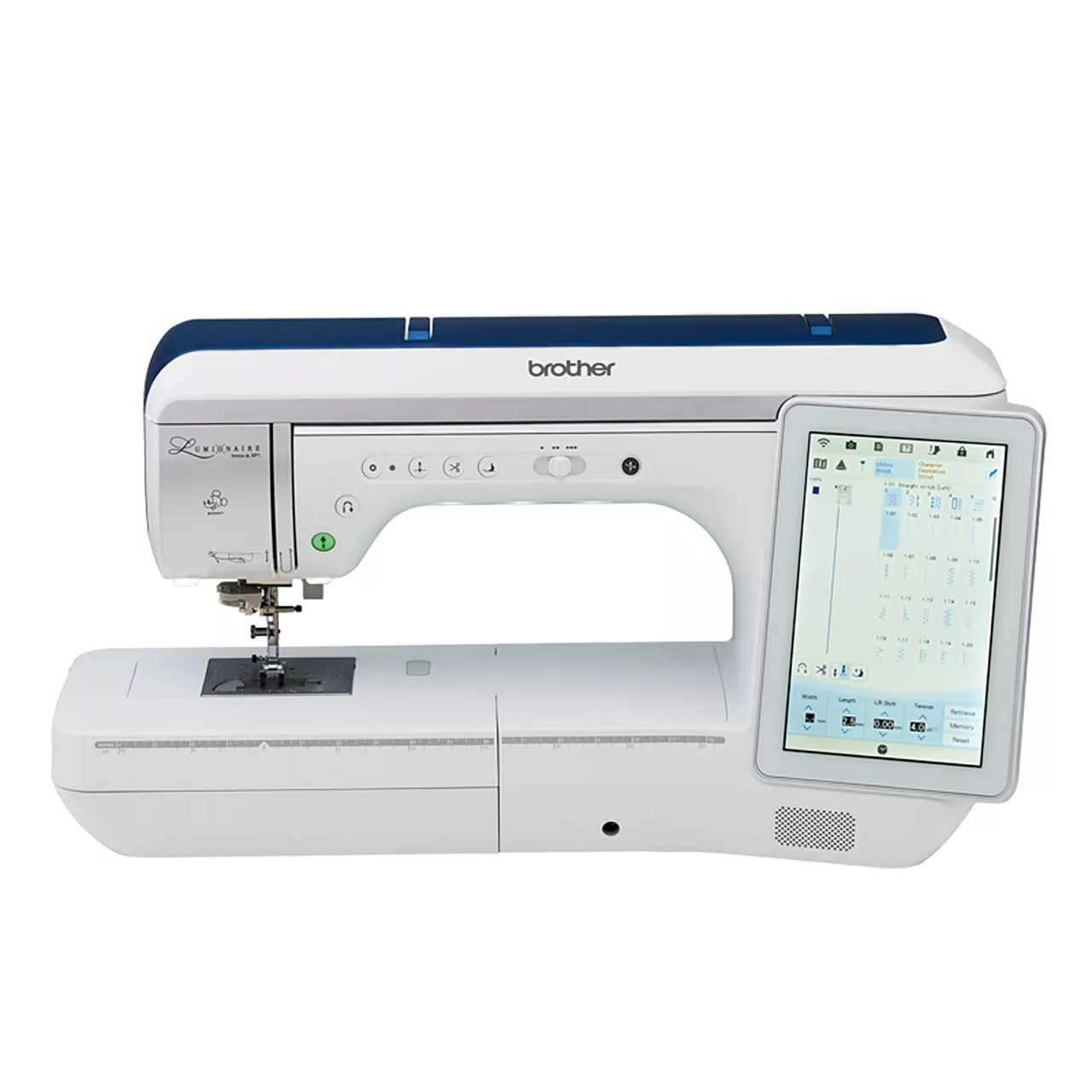

See it before you sew it with the Innov-is XP1 Luminaire
SGD 22,348.00
- Project stitches and designs for precise placement
- Large Embroidery Area (408mm x 272mm)
- Mobile-App connectivity for stitch monitoring & transferring of images
- 13.1“ from needle to arm
- My Design Centre for digitizing
- Laser gridlines
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Automatic
Thread Cutter
Automatic
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Automatic
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Colour LCD
Wide Table
Optional
Warranty
2 Years on-site warranty
Sewing Features Spec
Stitch No
821
Sewing Speed
1,050 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Buttonhole Sewing
one-step
Number of Buttonholes
15
Drop Feed
Yes
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7 (longer ver.)
Embroidery Features Spec
Embroidery Speed (Max)
1050 spm
Embroidery Area Max
272 mm x 408 mm
Built In Embroidery Patterns
1,187 Designs (included 191 Disney character)
Build In Embroidery Font
24（22 Alphabet, 2 Cyrillic)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Camera Function
Yes
Needle number for Embroidery
1
Show More
Show Less
